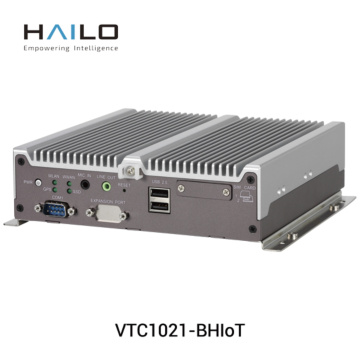

VTC-1021
Tuotenro
VTC-1021
Toimitusaika 21-30pv
0,00 EUR
- Intel Atom® x5-E3940 processor quad core 1.6GHz
- Built-in Hailo AI module
- Built-in U-blox M8N GPS, optional dead reckoning support
- Built-in CAN 2.0B. optional OBD2 SAE J1708/SAE J1939
- 2 x PoE support, total 60W (VTC 1021-CHIoT only)
- 2 x RJ45 10/100/1000 Fast Ethernet with LED
- 3 x DI and 3 x DO support
- Smart power management with ignition on/off delay via software control and low voltage protection
- Variety of wireless communication options
- Certified by CE/FCC/E13 mark
| System | |
| Processor | Intel Atom® processor Apollo Lake E3940, 1.60GHz |
| Hailo AI acceleration module | Form factor: mini-PCIe (full size) Interface: PCIe Gen3 x 1 Performance: 13 tops |
| Chipset | SoC |
| Storage | 1 x 2.5” SATA 3.0 1 x mSATA for full-size mini-PCIe socket |
| Memory | 1 x 204-pin DDR3L SO-DIMM socket support 1866MHz up to 8GB. Default 4GB |
| Graphics | Integrated Intel® HD Graphics |
| I/O Ports | |
| USB 2.0 | 2 x USB2.0 |
| USB 3.0 | 1x USB 3.0 |
| Serial | 1x RS-232 1x RS-422/485 |
| Video | 1 x VGA 1 x HDMI |
| Ethernet | 2x GbE LAN , RJ-45 |
| Other Ports | 1 x DB26 port - 1 x CAN Bus 2.0B - 1 x RS232 Tx/Rx - 1 x GPS DR (option) - 3 x DI and 3 x DO Mic-in/Line-out |
| Expansion | |
| Expansion Interface | 1 x Full size mini-PCIe socket (USB 2.0 + PCIe +
mSATA) 1 x Full size mini-PCIe socket (USB 2.0 + PCIe) with Hailo module 1 x Full size mini-PCIe socket (USB 2.0) |
| Operating System | |
| Operating System | Windows® 10 / LINUX |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~36VDC |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C with W.T. SSD |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.7 kg |
| Dimensions | 180 x 180 x 50 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | 1 x U-blox NEO-M8N onboard (support
GPS/Glonass/QZSS/Galileo/Beidou) Built-in G-sensor TPM 2.0 |
| Certification | |
| Certification | CE, FCC Class A, E-Mark |
| Jäähdytys | Fanless |
|---|
