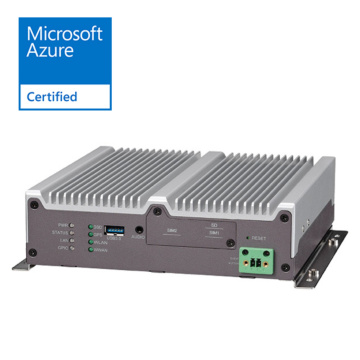

VTC-1010
Tuotenro
VTC-1010
Toimitusaika 21-30pv
0,00 EUR
- Intel® Atom™ processor E3827, 1.75GHz
- Dual SIM cards + dual WWAN modules support
- Wide operating temperature -30°C ~ 70°C
- Built-in CAN 2.0B. Optional CAN/OBDII module (CAN Bus 2.0B or OBDII SAE J1939)
- 4 x mini-PCIe socket rich expansion capability
- Wake on RTC/SMS via WWAN module
- Voice communication via WWAN module
- Compliant with MIL-STD-810G
- Built-in U-blox M8N GPS, optional dead reckoning support
System | |
Processor | Intel® Atom™ processor E3827, Dual Core 1.75GHz |
Chipset | SoC |
Storage | 1 x 2.5” SATA 3.0 1 x SD card socket |
Memory | 1 x 204-pin DDR3L SO-DIMM socket support 1066MHz/1333MHz up to 8GB. Default 2GB |
Graphics | Integrated Intel® HD Graphics |
I/O Ports | |
USB 2.0 | 1 x USB2.0 |
USB 3.0 | 1x USB 3.0 |
Serial | 1x RS-232 1x RS-422/485 |
Video | 1 x VGA 1 x DisplayPort |
Ethernet | 1x GbE LAN , RJ-45 |
Other Ports | 1 x DB26 port - 1 x CAN Bus 2.0B - 1 x RS232 Tx/Rx - 1 x GPS DR (option) - 3 x DI and 3 x DO Mic-in/Line-out |
Expansion | |
Expansion Interface | 1 x Full size mini-PCIe socket (USB 2.0) 1 x Full size mini-PCIe socket (USB 2.0+ PCIe) 1 x Full size mini-PCIe socket (mSATA or PCIe) 1 x Half size mini-PCIe socket (USB 2.0 + PCIe) |
Operating System | |
Operating System | Windows 8 Professional, WES8 Windows 7, WES7 Tizen IVI Fedora Wind River® Intelligent Device Platfrom XT 2.0 |
Power | |
DC Input / Source Voltage | Power Input Voltage 9~36VDC |
Operating Temperature | |
Operating Temperature | -30°C ~ +70°C with W.T. SSD |
Humidity Range | 10% ~ 95%, non-condensing |
Cooling System / Thermal Solution | |
Thermal Solution | Passive - Fanless |
Dimensions / Weight | |
Weight (kg) | 1.7 kg |
Dimensions | 180 x 180 x 50 mm |
Enclosure | |
Bezel | |
Material | Aluminum / Steel |
Mounting | Desk / Wall mounting |
Peripherals & Devices | |
Accessories | |
Extra Features | 1 x U-blox NEO-M8N onboard (support GPS/Glonass/QZSS/Galileo/Beidou) Built-in G-sensor TPM 2.0 |
Certification | |
Certification | CE, FCC Class A, E-Mark |
Jäähdytys | Fanless |
---|
