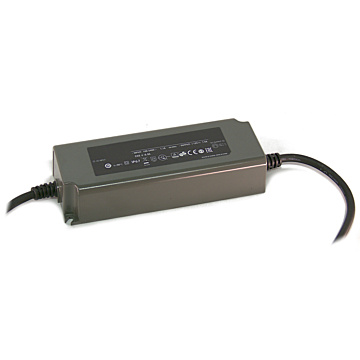

Virtalähde AC/DC 230VAC/12VDC 7.5A/90W IP67
Tuotenro
powdc1267-90
Varastossa
79,96 EUR 63,71 EUR
- IP67-suojattu virtalähde ulko- ja sisäkäyttöön.
- Sisään verkkovirta 230AC / liitin CEE 7/7.
- Ulostulo DC12V, liitin XLR 4P sekä +/-avoimena (adapteri mukana).
- Max teho 90W/7.5A.
- Kiinteät johdot.
- Käyttölämpötila -35C ~ +70C.
| OUTPUT | DC Voltage | 12V |
| Rated Current | 7.5A | |
| Rated Power | 90W | |
| Ripple and Noise | 150mVp-p | |
| Voltage tolerance | +/-4% | |
| Line Regulation | +/-0.5% | |
| Load Regulation | +/-1.5% | |
| Setup rise time | 500ms, 80ms/230VAC | |
| Hold up time | 16ms at full load | |
| INPUT | Voltage range | 90 ~ 264VAC |
| Frequency range | 47-63Hz | |
| Efficiency | 89.00% | |
| AC Current | 0.5A/230AC | |
| Inrush current | COLD START 60A/230VAC | |
| Leakage current | <0.25mA / 240VAC | |
| PROTECTION | Overload | 105-115% |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| Short circuit | Hiccup mode, recovers automatically after fault condition is removed | |
| Over Voltage | 15-17V | |
| Protection type :Shut down o/p voltage, re-power on to recover | ||
| Over Temperature | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | Working temp | -35 - 70C |
| Working humidity | 20-95% | |
| Storage temp | -40-80C / 10-95% | |
| Temp coeffient | +/-0.03% | |
| Vibration | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY & EMC | Safety Standards | EN61558-1,-2-16 listed; EN60335-1 listed; EAC TP TC 004; IP67 approved for power body |
| Withstand voltage | I/P-O/P:3.75KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| Emc emission | Compliance to EN55032 (CISPR32) Class B, EN55014-1, EN61000-3-2 class A,EN61000-3-3;EAC TP TC 020 | |
| Emc immunity | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN55014-2, light industry level (surge L- N : 2KV), criteria A;EAC TP TC 020 | |
| OTHERS | MTBF | 3044.3K hrs min. Telcordia SR-332 (Bellcore); 292.8K hrs min MIL-HDBK-217F (25C) |
| Dimension & weight | 171*63*37.5mm / 0.92kg |
| Sisääntulo jännite | 230VAC , 1-vaihe |
|---|---|
| Ulostulojännite | DC12V |
| Teho | 90W |
| Soveltuvuus | Sisäkäyttöön, Ulkokäyttöön |
| Suojausluokka | IP67 |
