UTC-515GP-ATB0E
Tuotenro
UTC-515GP-ATB0E
Toimitusaika 14-22pv

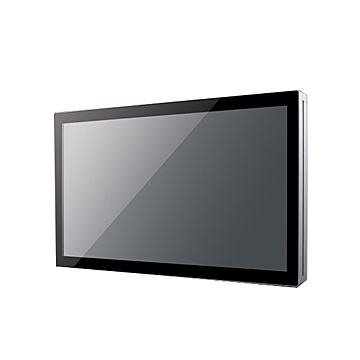

15.6" Ubiquitous Touch Computer with Intel® Pentium® N4200 processor
Ominaisuudet
* Low power consumption and fanless design
* Built in Intel® Pentium® N4200 processor
* 15.6" monitor with 16:9 widescreen display
* IP65-rated front panel for water and dust resistance
* Aluminum frame with side groove design for flexible peripheral installation
* Support both landscape and portrait screen orientation
* Rich I/O and diverse peripheral options
* VESA 100 mm standard mounting holes for varied mounting demands
* Built in Intel® Pentium® N4200 processor
* 15.6" monitor with 16:9 widescreen display
* IP65-rated front panel for water and dust resistance
* Aluminum frame with side groove design for flexible peripheral installation
* Support both landscape and portrait screen orientation
* Rich I/O and diverse peripheral options
* VESA 100 mm standard mounting holes for varied mounting demands
Spesifikaatiot
| System | |
| Processor | ntel® Pentium® N4200 |
| CPU Performance | 1.1GHz (Quad-Core) |
| Security Hardware | |
| Chipset | |
| Storage | 1 x SATA SSD |
| Storage Support | |
| Memory | 1 x SO DIMM DDR3L 1600MHz up to 8 GB |
| Memory (RAM) | 4GB |
| Display | |
| Screen Size | 15.6" TFT LCD |
| Screen Resolution | 1366x768 |
| Display Ratio | 16 ::09 |
| Contrast Ratio | |
| Brightness | 400 nits |
| Viewing Angle | 170/160 |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| I/O Ports | |
| USB 2.0 | 2x USB 2.0 |
| USB 3.0 | 2x USB 3.0 |
| Serial | 2x RS-232 |
| Video | 1x VGA, 1x HDMI |
| Ethernet | 2 x RJ45 GbE |
| Other Ports | Audio Line-out x 1, Mic-in x 1 |
| Operating System | |
| Operating System | Windows 10 Pro, Windows 10 IoT, Windows 7 Pro |
| Power | |
| DC Input / Source Voltage | 12V DC / 230V AC adapter |
| Power Management | |
| Expansion Slots | |
| Multimedia | |
| Integrated Speakers | 2x 1 Watt Speaker |
| Operating Temperature | |
| Operating Temperature | 0ºC to 40ºC (32ºF to 122ºF) |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 5 kg |
| Dimensions | 389.81 x 240.12 x 45.20 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum |
| Mounting | VESA 100 |
| Note * | |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE / FCC |
