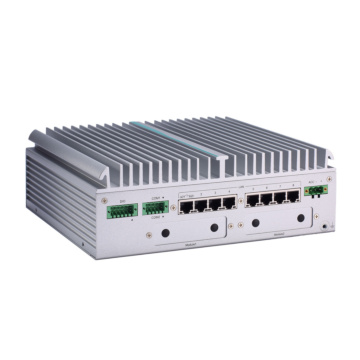

    Fanless Embedded System with LGA1151 9th/8th Gen Intel® Core™ i7/i5/i3, Celeron®, Pentium®, and Xeon® Processor for Vehicle PC

    • LGA1151 9th/8th Gen Intel® Core™ i7/i5/i3, Celeron®, Pentium® and Xeon® processor (up to 65W) with Intel® C246 (Coffee Lake)
    • Fanless and wide operating temperatures from -40°C to +70°C
    • Up to 8 GbE PoE port by RJ-45 connector type
    • Supports M.2 Key B and M.2 Key E for wireless communication module
    • Smart Ignition for power on/off schedule, vehicle battery protection and different power mode
    • Convenient 2 hot-swappable HDD/SSD slots and flexible I/O windows
    • CE, FCC and E-Mark certified
    System
    Processor LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Celeron®, Pentium®, and Xeon® processor (CPU TDP max. up to 65W)
    Security Hardware TPM 2.0
    Chipset Intel C246
    Storage 2 x 2.5” 9.5 mm swappable SATA drive with 2 SATA, Intel® RAID 0/1 supported
    2 x mSATA (occupied 2 x PCI Express Mini Card slot)
    Memory 2 x 260-pin DDR4-2666 ECC/non-ECC SO-DIMM, up to 64GB
    Audio 1 x Mic-in, 1 x Line-out
    Graphics 1 x VGA (supports up to 1920 x 1200 @60Hz)
    2 x HDMI (supports up to 4K/2K @60Hz)
    I/O Ports
    USB 2.0 -
    USB 3.0 4 x USB 3.0
    Serial 2 x RS-232/422/485
    Video 1 x VGA
    2 x HDMI
    Ethernet 1 x 10/100/1000 Mbps Ethernet (Front)
    8 x 10/100/1000 Mbps Ethernet (Back)(PoE, 90W budget)
    Other Ports 1 x Terminal block isolated 6-in/2-out DIO (isolation voltage: 2 kV)
    TPM 2.0
    1 x Reset button
    4 x Antenna opening
    2 x External accessible SIM card socket
    2 x Flexible I/O window
    Expansion
    Expansion Interface 1 x Full-size Rev.1.2 PCI Express Mini Card slot (1x mSATA/USB/PCIe)
    1 x Half-size Rev.1.2 PCI Express Mini Card slot (1x mSATA/USB)
    1 x M.2 3050/3042 B-key
    1 x M.2 2230 A & E-key
    Operating System
    Operating System Windows® 10, LINUX
    Power
    DC Input / Source Voltage General: 1 x Terminal block, 9 to 36 VDC
    Vehicle: 1 x Terminal block, 12/24 VDC with smart ignition
    Operating Temperature
    Operating Temperature -40°C ~ +70°C with W.T SSD/DRAM
    Humidity Range 0% ~ 95%, non-condensing
    Shock
    Vibration 3 Grms w/ SSD (5 to 500Hz, X/Y/Z direction; random, operating)
    1 Grms w/ HDD (5 to 500Hz, X/Y/Z direction; random, operating)
    2.5 Grms w/ HDD & Anti-Vibration Kit (5 to 500Hz, X/Y/Z direction; random, operating)
    MIL-STD-810G, Method 514.6C-VI Category 4 compliant
    Cooling System / Thermal Solution
    Thermal Solution Passive
    Dimensions / Weight
    Weight (kg) 4.8 kg
    Dimensions 240 x 210.5 x 82.2 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk / Wall mounting /DIN-rail kit
    Certification
    Certification CE (Class A), FCC (Class A), E-Mark (E13) certified
    Lisätietoja
    JäähdytysFanless
