UNO-148
Tuotenro
UNO-148-x
Toimitusaika 21-30pv
0,00 EUR

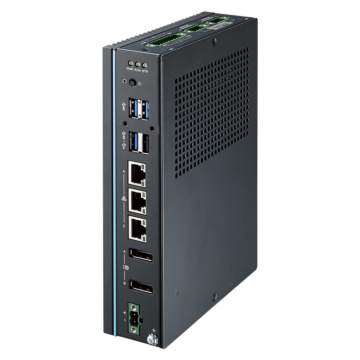

Compact DIN-Rail Edge Controller with 11th Gen Intel® Core™ i CPU
- Port isolation for 8 x DI, 8 x DO, 4 x COM
- Supports M.2 M key 2280 NVMe SSD storage, M.2 B key 2242 storage, 3042/3052 cellular modules, and M.2 E Key 2230 wi-fi modules
- Dual 2500BASE-T Ethernet supports Time-Sensitive Network(TSN) technology
- Remote out-of-band (OOB) power management with Advantech iBMC technology
- Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified
| System | |
| Processor | Intel® Core™ i3-1115G4E 2.2GHz Dual core Intel® Core™ i5-1145G7E 1.5GHz Quad core Intel® Core™ i7-1185G7E 1.8GHz Quad core |
| Security Hardware | TPM2.0 |
| Chipset | SoC |
| Storage | 1 x NVMe M.2 SSD slot (2280 M-key) 1 x M.2 B key |
| Storage Support | |
| Memory | 1 x SO-DIMM with 8 GB DDR4 3200 Mhz 1 x DDR4 SO-DIMM Slot |
| Audio | |
| Graphics | Intel® Iris® X |
| I/O Ports | |
| USB 2.0 | 1 x USB2.0 |
| USB 3.2 | 3x USB 3.2 |
| Serial | 4 x isolated RS-232/422/485 |
| Video | 2 x DisplayPort |
| Ethernet | 2 x 10/100/1000 Mbps 1 x 10/100/1000/2500 Mbps Ethernet |
| Other Ports | 8bit DIO |
| Expansion | |
| Expansion Interface | 1 x Full-size mPCIe 1 x M.2 E key 1 x M.2 M key 1 x M.2 B key |
| Operating System | |
| Operating System | Windows® 10, Windows® 11, LINUX |
| Power | |
| DC Input / Source Voltage | 10-36V DC |
| Operating Temperature | |
| Operating Temperature | -20°C ~ +60°C (with Wide-Temp SSD, Memory) |
| Humidity Range | 10% ~ 90%, non-condensing |
| Vibration | 4 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Shock | 50 G, IEC 60068-2-27, half sine, 11 ms duration |
| Cooling System / Thermal Solution | |
| Thermal Solution | Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.3 kg |
| Dimensions | 45 x 140 x 200 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum |
| Mounting | Din-Rail |
| Certification | |
| Certification | CE |
| Jäähdytys | Fanless |
|---|---|
| CPU Family | Tiger Lake (11th Gen Core i3/i5/7) Mobile |
| Operating Temp | Wide Temp -20..70C |
