UNO-137 V2
Tuotenro
UNO-137-I23BA
Toimitusaika 21-30pv
0,00 EUR

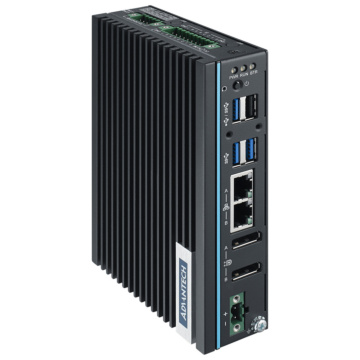

Small-Size Integrated DIN-Rail IPC with Intel® Atom® x6425RE
- Intel® Atom® x6425RE (1.9GHz) processor with 8GB DDR4 memory
- Wide operating temperature range (-40 ~ 70 °C) and wide power input range (10 ~ 36 VDC)
- Port isolation for 8 x DI, 8 x DO, 2 x COM
- DP++ ensures HDMI/DVI compatibility
- Dual storage: 1 xM.2 M-key 2242 PCIe/NVMe or SATA/SSD and 1 x mSATA
- Onboard TPM 2.0 provides hardware-based security
- Modular design for optional iDoor extension
- Ruggedized DIN-rail kit
- Compliant with IEC 61010-1 safety requirements
| System | |
| Processor | Intel® Atom® x6425RE 1.9GHz Quad-Core |
| Security Hardware | TPM2.0 |
| Chipset | SoC |
| Storage | 1 x SATA M.2 SSD slot (2242 M-key) |
| Storage Support | |
| Memory | 1 x SO-DIMM Memory with 8 GB DDR4 3200 Mhz |
| Audio | |
| Graphics | Intel® UHD Graphics |
| I/O Ports | |
| USB 2.0 | 1 x USB2.0 |
| USB 3.2 | 3x USB 3.2 |
| Serial | 2x RS-232/422/485 |
| Video | 2 x DisplayPort |
| Ethernet | 2 x 10/100/1000/2500 Mbps Ethernet |
| Other Ports | 8bit DIO |
| Expansion | |
| Expansion Interface | 1 x mPCIe slot 1 x M2. 2230 E key |
| Operating System | |
| Operating System | Windows® 10, Windows® 11, LINUX |
| Power | |
| DC Input / Source Voltage | 100-240V AC ATX, 850W |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +60°C (with Wide-Temp SSD, Memory) |
| Humidity Range | 10% ~ 90%, non-condensing |
| Vibration | 2 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Shock | 50 G, IEC 60068-2-27, half sine, 11 ms duration |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 0.8 kg |
| Dimensions | 35 x 150 x 105 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall Mount |
| Certification | |
| Certification | CE |
| Jäähdytys | Fanless |
|---|---|
| CPU Family | Alder Lake (12th Gen Atom X/Intel N) |
| Operating Temp | Wide Temp -40..70C |
