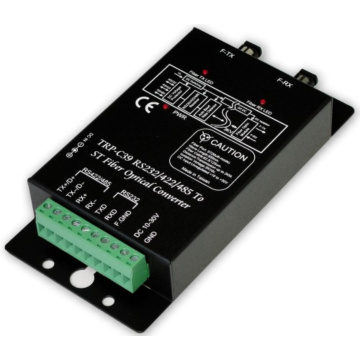

TRP-C39
Fiber to RS-232/422/485 Isolated converter, ST Multi-mode
- Wide range power input voltage.
- ST Multi-mode fiber port.
- Auto direction flow control on RS-485.
- Automatically switch signal RS-232, RS-422 and RS-485.
- Support 3000V DC isolation protection.
- All RS-422/485 signals provide surge and over current protection.
- Power/TX/RX mode LED indicator.
- Fiber transmission distance up to 2KM .
- Auto baud rate switching from 300bps to 115.2Kbps.
- Support Din-Rail and panel mount.
| |
|
|
| Specifications |
|
- Power Input Voltage: DC +10V to +30V.
- Interface: RS-232/422/485 auto switching to Fiber (Multi-mode).
- RS-232: 3 full-duplex (TXD, RXD, GND).
- RS-422: Differential 4 full-duplex wires ( TX+ , RX+, TX- , and RX-).
- RS-485: Differential 2 half-duplex wires (D+, D-).
- Cable: Fiber ST Cable (62.5/125um).
- Wavelength: 820 nM.
- Distance: RS-422/485 up to 4000ft . ( 1250M ), and Fiber up to 2 KM .
- Baud Rate: From 300bps to 115.2kbps (maximum).
- Operating System: Windows/Linux/Unix/MAC.
- Connection type: Screw terminal for maximum AWG 12 wire.
- Signal LED: Power on, TX, RX.
- Power supply: Screw terminal, or standard external DC adapter.
- Power consumption: 1.6W.
- Isolation Voltage: 3000V DC.
- Operating temperature:-10 to 50℃.
- Storage temperature: -20 to 70℃.
- Humidity: 10-90% non-condensing.
- Dimension: 151 mm X 75mm X 26mm .
- Weight: 375g .
|
Lisätietoja | Media 1 | Fiber |
|---|
| Media 2 | RS-232/422/485 |
|---|
| Valmistaja / Brand | Trycom |
|---|
