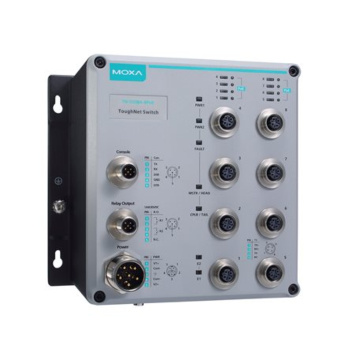

TN-5500A Series

Tuotenro
TN-5500A-x
Toimitusaika 14-22pv

EN 50155 8- to 18-port Ethernet switches with up to 8 PoE ports and up to 2 Gigabit Ethernet ports

  • Up to 2 Gigabit ports with optional bypass relay function
  • 8 IEEE 802.3at/af compliant PoE and Ethernet combo ports
  • Isolated power with 24 to 110 VDC power supply range
  • Complies with all EN 50155 mandatory test items
  • -40 to 75°C operating temperature range
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
Ethernet Interface
10/100/1000BaseT(X) Ports, Q-ODC Fiber Connector TN-5510A-2GLSX Series: 2
TN-5510A-8PoE-2GLSX Series: 2
10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector with bypass relay) TN-5510A-2GTXBP Series: 2
TN-5510A-8PoE-2GTXBP Series: 2
TN-5518A-2GTXBP Series: 2
TN-5518A-8PoE-2GTXBP: 2
10/100BaseT(X) Ports (M12 D-coded 4-pin female connector) TN-5508A/5510A Series non-PoE models: 8
TN-5516A/5518A Series non-PoE models: 16
TN-5516A/5518A Series PoE models: 8
PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector) TN-5508A/5510A/5516A/5518A Series PoE models: 8
PoE Ports (10/100BaseT(X), RJ45 connector) 4
10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector) TN-5510A-2GTX Series: 2
TN-5510A-8PoE-2GTX Series: 2
TN-5518A-2GTX Series: 2
TN-5518A-8PoE-2GTX Series: 2
Standards

IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1X for authentication
IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
TN-5508A/5510A/5516A/5518A Series PoE models: IEEE 802.3af/at for PoE/PoE+ output
TN-5510A Series 2GLSX models: IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Ethernet Software Features
Broadcast Forwarding IP directed broadcast, broadcast forwarding
Filter 802.1Q, GMRP, GVRP, IGMP v1/v2/v3, Port-based VLAN, Static Multicast
Industrial Protocols EtherNet/IP Adapter, Modbus TCP Server (Slave)
Redundancy Protocols Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, Turbo Ring with DRC
Security Broadcast storm protection, HTTPS/SSL, Local Account Accessibility, TACACS+, Port Lock, RADIUS, Rate Limit, SSH
Switch Properties
Processing Type
MAC Table Size
Packet Buffer Size
Max. No. Of VLANs 64
Power Parameters
Connection
Input Current
Input Voltage Redundant dual inputs, 24/36/48/72/96/110 VDC
Power Budget TN-5500A Series PoE models: 120 W
Physical
Dimensions
Installation Din-rail mounting (optional)
Wall mounting
Housing Metal
Lisätietoja
Managed EthManaged
Fiber OptionMulti-mode
PoE OptionPoE Ports
Valmistaja / BrandMoxa
