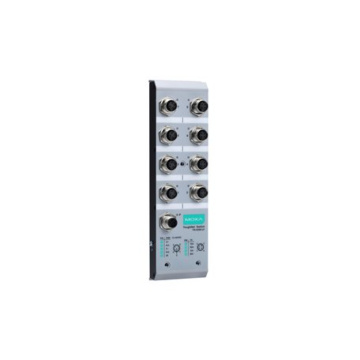

TN-5308-4PoE
Tuotenro
TN-5308-4PoE
Toimitusaika 14-22pv
EN 50155 8-port unmanaged Ethernet switches
- M12 connectors and IP40 metal housing
- Up to 8 IEEE 802.3af compliant PoE and Ethernet combo ports
- Supports IEEE 802.3/802.3u/802.3x
- Complies with all EN 50155 mandatory test items
- -40 to 75°C operating temperature range (-T models)
| Ethernet Interface | |
| 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector) | TN-5308 Series non-PoE models: 8 |
| PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector) | TN-5308-4PoE Series: 4 TN-5308-8PoE Series: 8 |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control TN-5308 Series PoE models: IEEE 802.3af for PoE |
| Switch Properties | |
| Processing Type | |
| MAC Table Size | |
| Packet Buffer Size | |
| Max. No. Of VLANs | |
| Power Parameters | |
| Connection | |
| Input Current | |
| Input Voltage | TN-5308-LV Series: 8.4 to 60 VDC TN-5308-MV Series: 50.4 to 137.5 VDC TN-5308 Series PoE models: 46 to 50 VDC |
| Power Budget | TN-5308 Series PoE models: 15.4 W |
| Physical | |
| Dimensions | |
| Installation | Din-rail mounting (optional) Wall mounting |
| Housing | Metal |
| Managed Eth | Un-Managed |
|---|---|
| Fiber Option | None |
| PoE Option | PoE Ports |
| Valmistaja / Brand | Moxa |
