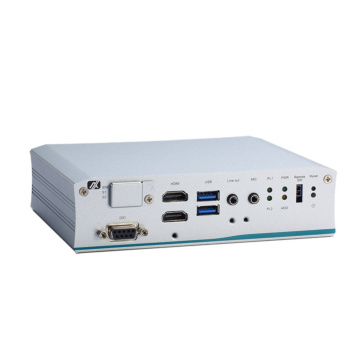

tBOX110-APL-TV Vehicle PC

Tuotenro

tBOX110-APL-TV-1

Toimitusaika 21-30pv

0,00 EUR

Fanless Embedded System with Intel Atom® Processor E3940 for Vehicle PC

CE and FCC certified and ISO 7637-2 compliant
Intel Atom® processor E3940
Fanless and wide operating temperatures from -40°C to +70°C
Supports 9 to 36 VDC and 12/24 VDC typical in-vehicle power input
Compact size with multiple COM, CANBus, and DIO for communication
Smart Ignition for power on/off schedule, vehicle battery protection, and different power modes
Suitable for transportation gateway applications

System
Processor	Intel Atom® x5-E3940 4C @1.6 GHz, TDP: 9.5W
Security Hardware
Chipset	SoC integrated
Storage	1 x Internal 2.5" SATA drive (9.5 mm height) 1 x mSATA (occupied 1 x PCI Express Mini Card slot)
Memory	1 x DDR3L-1866 SO-DIMM, up to 8GB
Graphics
I/O Ports
USB 2.0
USB 3.0	2x USB 3.0
Serial	2 x RS-232/422/485 (4-wire) with shield grounding
Video	2 x HDMI 1.4b (with keylock)
Ethernet	2 x RJ-45 10/100/1000 Mbps Ethernet (Intel® I210-IT)
Other Ports	2 x CANBus 1 x DB9 8-bit programmable DIO 1 x Mic-in 1 x Line-out
Expansion
Expansion Interface	2 x Full-size Rev.1.2 PCI Express Mini Card slot: 1 x USB/PCIe with external SIM socket 1 x mSATA/USB/PCIe with external SIM socket
Operating System
Operating System	Windows® 10 / LINUX
Power
DC Input / Source Voltage	1 x Terminal block DC-in, (typical: 12/24 VDC) with ACC ignition General use: 1 x Terminal block, 9 to 36 VDC Vehicle: 1 x Terminal block, 12/24 VDC with smart ignition
Operating Temperature
Operating Temperature	-40°C ~ +70°C with W.T. SSD
Humidity Range	0% ~ 95%, non-condensing
Cooling System / Thermal Solution
Thermal Solution	Passive - Fanless
Dimensions / Weight
Weight (kg)	1.0 kg
Dimensions	164.1 x 128 x 44.1 mm
Enclosure
Material	Aluminum / Steel
Mounting	Din-rail, Wall-mount
Certification
Certification	CE and FCC certified ISO 7637-2 compliant
