SSD2203-Y
Tuotenro
SSD2203-Y
Toimitusaika 21-30pv

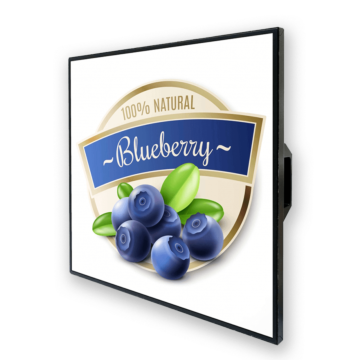

22” TFT LCD, 500 nits, LED Backlight, 1920x1920
- 22" square-shaped LCD (aspect ratio of 1:1)
- Slim bezel
- Long lasting 24/7 operations
- MTBF: 100,000 hours
| Display | |
| Screen Size | 22" TFT LCD |
| Screen Resolution | 1920x1920 |
| Display Ratio | 1 ::1 |
| Contrast Ratio | 650 ::1 |
| Brightness | 1000 nits |
| Viewing Angle | 178°(H),178°(V) |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | - |
| I/O Ports | |
| Video |
2x DVI-D |
| Other Ports | |
| Operating System | |
| Operating System | |
| Power | |
| DC Input / Source Voltage | 12V DC input |
| Multimedia | |
| Operating Temperature | |
| Operating Temperature | 0ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 4.5 kg |
| Dimensions | 412.4x412.4x51.6mm |
| Enclosure | |
| Bezel size |
6.9/6.9/6.9/6.9 mm |
| Material | |
| Mounting | VESA 200x200 |
| Protection | |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE / FCC |
