SDM300S-N4200-4GB
Tuotenro
SDM300S-N4200-4GB
Toimitusaika 21-30pv

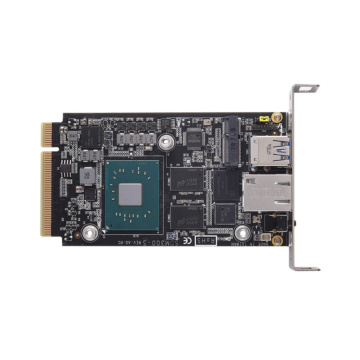

SDM-S module with Intel® Pentium® processor N4200, onboard DDR4 4GB, EMMC 64GB, 1 LAN , 2 USB 3.0
- Intel® Smart Display Module (Intel® SDM) specification
- Intel® Pentium® processor N4200 & Celeron® processor N3350 (Apollo Lake)
- 4GB LPDDR4 memory onboard (8GB optional)
- 64GB eMMC onboard (32G optional)
- One M.2 Key E 2230 slot
- Two USB 3.0 and one GbE LAN
- Small design for easy integration into slim displays
- Optimized for digital signage, public kiosks, professional monitors, point-of-sale
- Projections for magic mirrors, beside terminals, hospitality, and more
| System | |
| Processor | Intel® Pentium® processor N4200 onboard |
| Chipset | SoC |
| Storage | 1 x M.2 Key B 2242 slot 1 x M.2 Key M 2280 slot |
| Memory | LPDDR4 4GB memory onboard |
| Graphics | Integrated Intel® HD Graphics |
| I/O Ports | |
| SDM Edge connector |
Standard PCle x8 (98-pin) 1 x USB3.0 |
| 1x HDMI 1.4 | |
| 1x DisplayPort 1.2 1x Serial TX/RX |
|
| 1 x I2C | |
| Ethernet | 1x GbE LAN , RJ-45 |
| Other Ports | 2 x USB3.0 HD audio codec with Mic-in/Line-out |
| Expansion | |
| Expansion Interface | 1 x M.2 Key E 2230 slot for Wi-Fi/BT |
| Operating System | |
| Operating System | |
| Power | |
| DC Input / Source Voltage | Through SDM golden finger +12V & +3.3VBS |
| Operating Temperature | |
| Operating Temperature | 0°C ~ +55°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 1.0 kg |
| Dimensions | 100 x 60 mm |
| Enclosure | |
| Bezel | |
| Material | |
| Mounting | |
| Certification | |
| Certification | CE, FCC Class A |
