RSC201
Tuotenro
RSC201
Toimitusaika 21-30pv
0,00 EUR

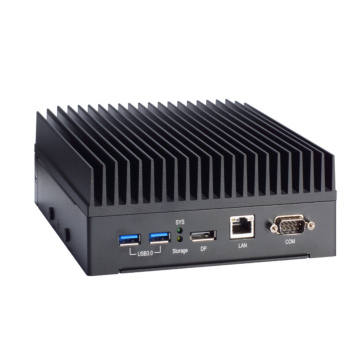

Fanless Edge AI Computer Vision System with Xilinx® Kria™ K26 SoM, GbE LAN, CANbus, PMOD, COM, USB 3.0, DisplayPort, and 5G Wireless Connection
- Xilinx® Kria™ K26 SoM
- Supports GbE LAN for cameras
- Supports 5G wireless connection
- Wide operating temperature from -30°C to +75°C
- Wide voltage input from 12 to 24 VDC
- Supports Linux
- Ideal for edge AI smart city / industrial applications
| System | |
| Processor | Quad-core Arm® Cortex®-A53 MPCore™ up to 1.5GHz |
| AI Accelerator | Xilinx Kria K26 System-on-Module |
| GPU / Graphics | Mali™-400 MP2 up to 667MHz |
| Security Hardware | |
| Chipset | SoC |
| Storage | eMMC 16GB 1 x M.2 Key B 2242 SSD slot (SATA3) |
| Memory | Onboard DDR4 4GB, 64-bit |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.0 | 2 x USB 3.0 |
| Serial | 1 x RS-232 |
| Video | 1 x Display 1.4 |
| Ethernet | 1 x 10/100/1000 Mbps Ethernet |
| Other Ports | 1 x 12-pin PMOD |
| Expansion | |
| Expansion Interface | 1 x M.2 Key B 3052 slot for 5G 1 x SIM socket |
| Operating System | |
| Operating System | Linux |
| Power | |
| DC Input / Source Voltage | 12-24V DC |
| Environment | |
| Operating Temperature | -30°C ~ +75°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Vibration | 3.5 Grms (5 to 500Hz, X, Y, Z directions) |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.5 kg |
| Dimensions | 150 x 111.0 x 65.6 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum , steel |
| Mounting | Wall mount |
| Certification | |
| Certification | CE, FCC certified |
| Jäähdytys | Fanless |
|---|
