RSC100
Tuotenro
RSC100
Toimitusaika 21-30pv

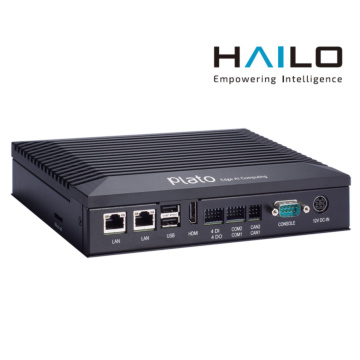

ARM-based Fanless Edge AI Computer with Hailo-8™ Processor, HDMI, GbE LAN, COM, DIO, CANbus
- Hailo-8™ AI processor, up to 26 TOPS
- Advanced AI performance, ideal for smart city applications
- Dual GbE for GigE camera and LiDAR connectivity
- Dual COM/Dual CANbus/8-CH DI/DO
- Supports Wi-Fi/Bluetooth/5G/LTE wireless connection
- Wide operating temperature from -20°C to +70°C
- Supports Linux operating system
| System | |
| Processor | NXP® i.MX 8QuadMax processor |
| GPU | SoC |
| Chipset | SoC |
| Storage | Onboard 16GB eMMC 1 x M.2 Key M 2280 SATA SSD slot 1 x Micro SD slot |
| Memory | 4GB LPDDR4 onboard |
| AI Accelerator | Hailo-8™ SoC, up to 26 TOPS |
| I/O Ports | |
| USB 2.0 | 2 x USB 2.0 |
| USB 3.0 | - |
| Serial | 2 x RS-232/422/485 |
| Video | 1 x HDMI 2.0 with 4K2K supported |
| Ethernet | 2 x 10/100/1000 Mbps Ethernet |
| Other Ports | 4-CH DI 4-CH DO 2 x CANbus |
| Expansion | |
| Expansion Interface | 2 x Full-size PCI Express Mini Card slot 1 x M.2 Key B 3052 slot 1 x SIM slot |
| Operating System | |
| Operating System | Yocto Linux 3.0 |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 12VDC |
| Operating Temperature | |
| Operating Temperature | -20°C to 70°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 2.1 kg |
| Dimensions | 200 x 150 x 45 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Wall mounting kit |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE, FCC Class A |
| Jäähdytys | Fanless |
|---|
