5G Modem Quectel RM520N-GL 5G Sub-6 M.2
Tuotenro
RM520N-GL
Toimitusaika 21-30pv
286,14 EUR 228,00 EUR

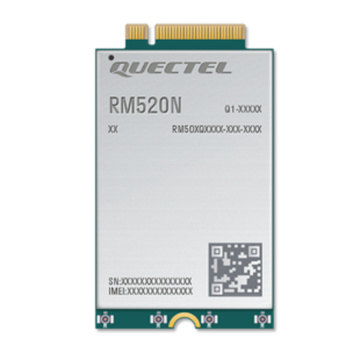

Quectel RM520N-GL 5G Sub-6 M.2
- Worldwide 5G and LTE-A coverage
- NSA and SA modes supported
- M.2 3052
- Max download 3400 Mbps / Upload 900Mbps
- Chipset : Qualcomm SDX62
| System | |
| Form Factor | M.2 |
| Dimensions | 52.0*30.0*2.3 mm |
| Frequency Bands | |
| 5G |
n1 (FDD 2100) MHzn2 (FDD 1900) MHzn3 (FDD 1800) MHzn5 (FDD 850) MHzn7 (FDD 2600) MHzn8 (FDD 900) MHzn12 (FDD 700) MHzn13 (FDD 700) MHzn14 (FDD 700) MHzn18 (FDD 850) MHzn20 (FDD 800) MHzn25 (FDD 1900) MHzn26 (FDD 850) MHzn28 (FDD 700) MHzn29 (SDL 700) MHzn30 (FDD 2300) MHzn38 (TDD 2600) MHzn40 (TDD 2300) MHzn41 (TDD 2500) MHzn48 (TDD 3600) MHzn66 (FDD 1700 / AWS-3) MHzn70 (FDD 2000 / AWS) MHzn71 (FDD 600) MHzn75 (SDL 1500) MHzn76 (SDL 1500) MHzn77 (TDD 3700) MHzn78 (TDD 3500) MHzn79 (TDD 4500) MHz
|
| LTE |
B1 (FDD 2100) B2 (FDD 1900) B3 (FDD 1800) B4 (FDD 1700 / AWS) B5 (FDD 850) B7 (FDD 2600) B8 (FDD 900) B12 (FDD 700ac) B13 (FDD 700c) B14 (FDD 700PS) B17 (FDD 700bc) B18 (FDD 800) B19 (FDD 800) B20 (FDD 800DD) B25 (FDD 1900) B26 (FDD 850) B28 (FDD 700) B29 (SDL 700) B30 (FDD 2300) B32 (SDL 1500) B34 (TDD 2000) B38 (TDD 2600) B39 (TDD 1900) B40 (TDD 2300) B41 (TDD 2500) B42 (TDD 3500) B43 (TDD 3600) B46 (TDD 5200) B48 (TDD 3600) B66 (FDD 1700 / AWS-3) B71 (FDD 600)
|
| Data Transfer | |
| mmWave | |
| Sub-6G | |
| LTE | |
| HSPA+ | - |
| Software Features | |
| Protocol | - |
| TLS | - |
| File System | - |
| FOTA | - |
| Android RIL | |
| USB Driver | |
| MBIM | |
| NDIS | |
