PUZZLE-5030
Tuotenro
PUZZLE-5030-XE2-R10
Toimitusaika 21-30pv
0,00 EUR

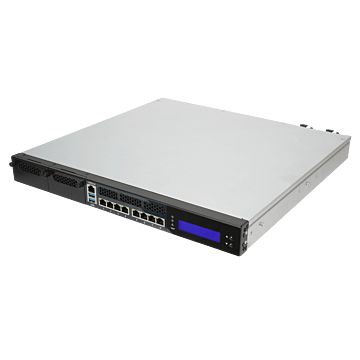

1U Rackmount Network Appliance support Intel® Gen8 Xeon® E-2378, 4 DDR4 slots, 8 x 2.5GbE , 2 PulM slots , 2 PCIe expansion, Redundant Power
- Intel® Gen8 Xeon® E-2378
- DDR4 3200MHz ECC/Non-ECC UDIMM , up to 128G
- 8 x 2.5 Gbps RJ-45 LAN ports & 2 pairs LAN bypass
- 2 x Standard PCIe slot (1 x PCIe Gen4 x4, 1 x PCIe Gen4 x8)
- 2 x PulM network module
- 1 x RJ-45 Console, 2 x USB 3.0
- 2 x 2.5” SATA HDD/SSD bay support SATA 3.0 (6 Gbps)
- 300W Redundant Power Supply
| System | |
| Processor | Intel® Gen8 Xeon® E-2378 |
| Memory | DDR4 3200MHz ECC/Non-ECC UDIMM |
| Chipset | Intel C256 |
| Storage | 2 x 2.5” SSD/HDD Bay: support SATA 3.0 (6 Gbps) |
| Expansion | 1 x PCIe x8 : Standard PCIe Gen 4 x8 (FHHL) 1 x PCIe x4 : Standard PCIe Gen 4 x4 (FHHL) 1 x PCIe mini Card Slot : with SIM card slot (PCIe Gen3 x1) 1 x M.2(NGFF) : M key 2260/2280 support PCIe Gen4 x2 or SATA 6Gb/s |
| TPM | 1x TPM2.0 pin header |
| Chassis | |
| Form Factor | 1U |
| Dimensions | 430 x 44.2 x 426mm |
| Weight (kg) | 10kg |
| I/O Ports | |
| Console | 1 x RJ45 |
| USB 3.0 | 4 x USB 3.0 2 x USB 3.0 on the front panel 2 x USB 2.0 by pin header |
| Serial | |
| Video | HDMI |
| IPMI | 1 x M.2 Socket B Key support IEI iRIS2 IPMI module 1 x 1 GbE RJ45 for IPMI port |
| Ethernet | 8 x LAN : 2.5 GbE RJ45 (Intel® I225V-AT) two pairs bypass; Port 1 support WOL |
| Other Ports | 1 x Console port(s) : USB type C and 1 x RJ45 auto-switching |
| Operating System | |
| Operating System | Linux Ubuntu |
| Power & Mechanical | |
| DC Input / Source Voltage | 230V AC input 300W Redundant Power |
| Processor Cooling | 3 x Cooling Fans with Smart Fan |
| System Cooling | 1 x System FAN |
| Operating Temperature | |
| Operating Temperature | 0ºC to 40ºC |
| Humidity Range | 10% to 95% non-condensing |
| Certification | |
| Certification | CE |
| Jäähdytys | Kotelo tuuletin |
|---|---|
| Operating Temp | Normal Temp 0..45C |
