PPC-324W TGL

Tuotenro

PPC-324W-PB5A

Toimitusaika 21-30pv

0,00 EUR

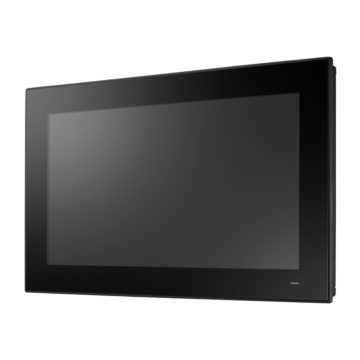

23.8" Fanless Panel PC with Intel® Core™ i5 Processor

Industrial-grade 23.8" LCD panel with 30k backlight lifetime
True-flat touchscreen with multi-touch projected capacitive control
High-performance, fanless 11th generation Intel® Core™ i processor
Dual channel memory slots, max 64G
Compact, fanless design with aluminum alloy enclosure
IP66-rated front panel
Supports dual displays (1 x external HDMI)
1 x M.2 bay (2242/2280 NVME or SATA Interface) for storage and support SATA RAID 0, 1
1 x 2500BASE-T Ethernet Supports Time-Sensitive Network(TSN) technology

System
Processor	Intel® Core™ i5-1145G7E 1.5GHz Quad core

Memory	1 x DDR4 SO-DIMM Slot
Chipset	SoC
Storage	1 x M.2 slot: M key for storage (SATA only, 2242)
Expansion	1 x M.2 slot : E key for wireless module (Type: 2230)

Display
Screen Size	23.8" TFT LCD
Screen Resolution	1920x1080
Display Ratio	wide
Contrast Ratio
Brightness	450 nits
Viewing Angle
Number of Colors
Touch Screen
Touchscreen	PCAP
I/O Ports
USB 2.0	1x USB2.0
USB 3.0	3x USB3.2
Serial	1 x RS-232/422/485 1 x RS-232
Video	1 x HDMI
Ethernet	1 x 10/100/1000 Mbps Ethernet (Intel I219-LM) 1 x 10/100/1000/2500 Mbps Ethernet (Intel I225-LM)
Other Ports	1 x Line Out
Operating System
Operating System	Windows 10 /Windows 11
Power
DC Input / Source Voltage	12-30V DC
Power Comsumption	80W
Operating Temperature
Operating Temperature	-10ºC to 50ºC
Humidity Range	10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution	Passive - Fanless
Dimensions / Weight
Weight (kg)	8.6 kg
Dimensions	596 x 374 x 62 mm
Enclosure
Protection
Material	Steel / Plastic
Mounting	Stand, Wall, VESA, Panel

Certification
Certification	CE, FCC Class B, BSMI, UKCA, VCCI

Lisätietoja
Valmistaja / Brand	Advantech
