PPC-321W TGL
Tuotenro
PPC-321W-PB50A
Toimitusaika 21-30pv
0,00 EUR

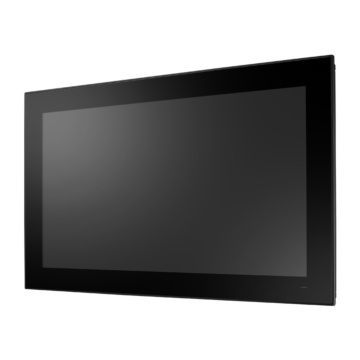

21.5" Fanless Panel PC with Intel® Core I5 CPU
- Industrial-grade 21.5" LCD panel with 50k backlight lifetime
- True-flat touchscreen with multi-touch projected capacitive control
- High-performance, fanless 11th generation Intel® Core™ i processor
- Dual channel memory slots, max 64G
- Compact, fanless design with aluminum alloy enclosure
- IP66-rated front panel
- Supports dual displays (1 x external HDMI)
- 1 x M.2 bay (2242/2280 NVME or SATA Interface) for storage and support SATA RAID 0, 1
- Support TPM2.0 hardware security
| System | |
| Processor | Intel® Core™ i5-1145G7E 1.5GHz Quad core |
| Memory | 1 x SDRAM, DDR4 max 32GB |
| Chipset | SoC |
| Storage | 1 x 2.5" SATA HDD Bay 1 x M.2 M key for Storage, SATA |
| Expansion | 1 x M.2 E key for wireless, 2230 |
| Display | |
| Screen Size | 21.5" TFT LCD |
| Screen Resolution | 1920*1080 |
| Display Ratio | wide |
| Contrast Ratio | 1000 |
| Brightness | 250 nits |
| Viewing Angle | |
| Number of Colors | |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| I/O Ports | |
| USB 2.0 | 1x USB2.0 |
| USB 3.0 | 3x USB3.2 |
| Serial | 1 x RS-232 1 x RS-232/422/485 |
| Video | 1 x HDMI |
| Ethernet |
1 x 10/100/1000 Mbps RJ-45 LAN |
| Other Ports | 1 x Line-Out |
| Operating System | |
| Operating System | Windows 10, Windows 11 |
| Power | |
| DC Input / Source Voltage | 12-30V DC |
| Power Comsumption | 75W |
| Operating Temperature | |
| Operating Temperature | -10ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 8.8kg |
| Dimensions | 558mm x 350mm x 61mm |
| Enclosure | |
| Protection | IP65 Front |
| Material | |
| Mounting | Panel Mount, VESA |
| Certification | |
| Certification | CE / FCC |
| Jäähdytys | Fanless |
|---|---|
| Näytön koko | 21.5" |
| Kosketusominaisuuden tyyppi | Projected Capasitive (PCAP) |
