PPC-321W EHL
Tuotenro
PPC-321W-EHL
Toimitusaika 21-30pv
0,00 EUR

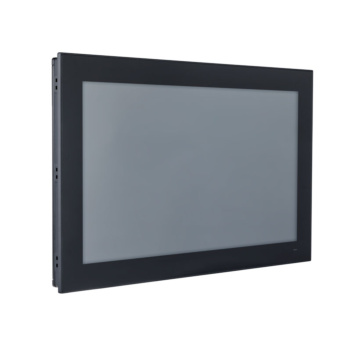

21.5" Fanless Panel PC with Intel® Celeron® J6412 Processor
- Industrial-grade 21.5" Full HD TFT LCD with 50K backlight lifetime
- Durable true-flat touchscreen with projected capacitive touch control
- Intel® Celeron® J6412 quad-core, 2.6 GHz, processor
- Up to 32 GB DDR4 SDRAM
- 1 x RS-232, 1 x RS-232/422/485, 2 x USB 2.0, and 2 x USB 3.0
- Compact, fanless design with solid aluminum alloy enclosure and IP65-rated front panel
- Supports E-key for wireless module
- Supports expansion via M.2 slot
- Supports Windows Embedded and Android OS
| System | |
| Processor | Intel Celeron J6412 |
| Memory | 1 x SDRAM, DDR4 max 32GB |
| Chipset | SoC |
| Storage | 1 x 2.5" SATA HDD Bay 1 x M.2 M key for Storage, SATA |
| Expansion | 1 x M.2 E key for wireless, 2230 |
| Display | |
| Screen Size | 21.5" TFT LCD |
| Screen Resolution | 1920*1080 |
| Display Ratio | wide |
| Contrast Ratio | 1000 |
| Brightness | 250 nits |
| Viewing Angle | |
| Number of Colors | |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| I/O Ports | |
| USB 2.0 | 2x USB2.0 |
| USB 3.0 | 2x USB3.0 |
| Serial | 1 x RS-232 1 x RS-232/422/485 |
| Video | 1 x HDMI |
| Ethernet | 2 x RJ45 GbE |
| Other Ports | |
| Operating System | |
| Operating System | Windows 10, Linux , Android10 |
| Power | |
| DC Input / Source Voltage | 12-30V DC |
| Power Comsumption | 42W |
| Operating Temperature | |
| Operating Temperature | 0ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 7.26 kg |
| Dimensions | 558mm x 350mm x 61mm |
| Enclosure | |
| Protection | IP65 Front |
| Material | |
| Mounting | Panel Mount, VESA |
| Certification | |
| Certification | CE / FCC |
| Jäähdytys | Fanless |
|---|---|
| Näytön koko | 21.5" |
| Kosketusominaisuuden tyyppi | Projected Capasitive (PCAP) |
