PPC-312 EHL
Tuotenro
PPC-312_x
Toimitusaika 21-30pv
0,00 EUR

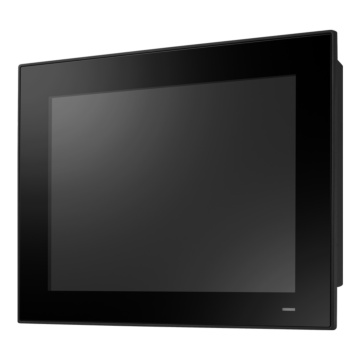

12.1" Fanless Panel PC with Intel® Celeron® N6210 Processor
- Industrial-grade 12" XGA TFT LCD with 30K backlight lifetime
- Durable true-flat touchscreen with 5-wire resistive/projected capacitive touch control
- Intel® Celeron® J6412 quad-core, 2.0 GHz, processor
- Up to 32 GB DDR4 SDRAM
- 1 x RS-232, 1 x RS-232/422/485, 2 x USB 2.0, and 2 x USB 3.1
- Compact, fanless design with solid aluminum alloy enclosure and IP66-rated front panel
- Supports E-key for wireless module
- Supports expansion via M.2 slot
- Supports Windows Embedded Linux and Android OS
| System | |
| Processor | Intel® Celeron® N6210 1.2GHz Dual-Core |
| Memory | 1 x DDR4 SO-DIMM Slot |
| Chipset | SoC |
| Storage | 1 x M.2 slot: M key for storage (SATA only, 2242) |
| Expansion | 1 x M.2 slot : E key for wireless module (Type: 2230) |
| Display | |
| Screen Size | 12.1" TFT LCD |
| Screen Resolution | 1024*768 |
| Display Ratio | 4::3 |
| Contrast Ratio | |
| Brightness | 500 nits |
| Viewing Angle | |
| Number of Colors | |
| Touch Screen | |
| Touchscreen | 5-wire resistive touch / PCAP |
| I/O Ports | |
| USB 2.0 | 2x USB2.0 |
| USB 3.0 | 2x USB3.0 |
| Serial | 1 x RS-232/422/485 1 x RS-232 |
| Video | |
| Ethernet | 2 x 10/100/1000/2500 Mbps Ethernet (Intel I226-LM) |
| Other Ports | |
| Operating System | |
| Operating System | Windows 10/ Windows 11 / Linux / Android |
| Power | |
| DC Input / Source Voltage | 12-24V DC |
| Power Comsumption | 35W |
| Operating Temperature | |
| Operating Temperature | -10ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 3.2 kg |
| Dimensions | 317 x 246 x 52 mm |
| Enclosure | |
| Protection | |
| Material | Steel / Plastic |
| Mounting | - |
| Certification | |
| Certification | CE, FCC Class B, BSMI, UKCA, VCCI |
| Valmistaja / Brand | Advantech |
|---|---|
| Jäähdytys | Fanless |
| Näytön koko | 12.1" |
| Kosketusominaisuuden tyyppi | Resistive |
