PICO52R
Tuotenro
PICO52RPGG
Toimitusaika 14-22pv

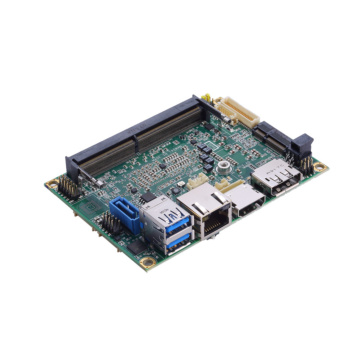

Pico ITX SBC with 8th Gen Intel® Core™ i7/i5/i3 and Celeron® Processor, DisplayPort, HDMI, LVDS and 2 GbE LAN
- 8th gen Intel® Core™ i7/i5/i3 and Celeron® processor
- 1 DDR4 SO-DIMM for up to 16GB of memory
- 2 USB 2.0 and 2 USB 3.0
- 2 GbE LAN
- M.2 Key E
- Intel® AMT 11 supported
| Form Factor | |
| Form Factor | PICO-ITX |
| System | |
| Processor | 8th gen Intel® Core™ i7/i5/i3 and Celeron® processor onboard |
| Integrated Graphics | Yes |
| Security Hardware | |
| Chipset | SoC integrated |
| Storage | 1 x SATA-600 |
| Storage Support | |
| Memory | 1 x 260-pin DDR4-2400 SO-DIMM, up to 16GB |
| Graphics | Intel HD graphics Integrated |
| I/O Ports | |
| USB 2.0 | 2 x USB 2.0 |
| USB 3.0 | 2 x USB 3.0 |
| USB 3.1 | |
| Serial | 2 x RS-232/422/485 |
| Video | 1 x LVDS 1 x HDMI 1 x DisplayPort |
| Ethernet | 2 x 10/100/1000 Mbps (Intel® i211-AT & Intel® i219-LM) |
| Other Ports | DIO MIC-in/Line-in/Line-out 1 x PS2 keyboard and mouse |
| Expansion | |
| Expansion Interface | 1 x M.2 Key E (PCIe x1, USB 2.0 in 22x30) |
| Operating System | |
| Operating System | Windows 10 |
| Power | |
| DC Input / Source Voltage | 2 x 2-pin connector +12V DC-in only AT Auto Power On function supported |
| Operating Temperature | |
| Operating Temperature | Operating Temperature -20°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | |
| Dimensions | 100 x 72 mm |
| Certification | |
| Certification | CE |
| Valmistaja / Brand | Axiomtek |
|---|---|
| Form Factor | Pico-ITX |
