PICO338
Tuotenro
PICO338-N97-8GB
Toimitusaika 21-30pv

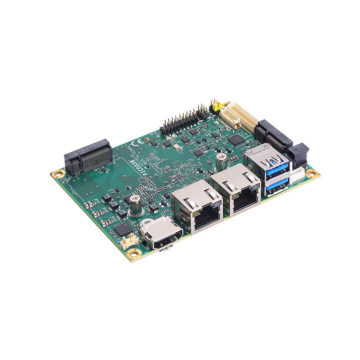

Pico-ITX SBC with Intel® Processor N97/Core™ i3-N305 Processor, HDMI, LVDS, and Two 2.5GbE LAN
- Intel® processor N97/Core™ i3-N305 processor
- 8GB or optional 16GB LPDDR5 on board
- Two 2.5GbE LAN ports
- M.2 Key B
- M.2 Key E
| Form Factor | |
| Form Factor | PICO ITX |
| System | |
| Processor | Intel® processor N97 |
| Integrated Graphics | Yes |
| Security Hardware | TPM2.0 |
| Chipset | SoC |
| Storage | 1 x M.2 Key B 2242 (PCIe x2/USB 2.0) 1 x PCIe NVMe SSD onboard, up to 512GB (optional) |
| Storage Support | |
| Memory | 8GB LPDDR5 onboard (16GB optional) |
| Graphics | Intel HD graphics Integrated |
| I/O Ports | |
| USB 2.0 | 2 x USB 2.0 |
| USB 3.0 | 2 x USB 3.2 |
| Serial | 1 x RS-232/422/485 |
| Video | 1 x LVDS 1 x HDMI |
| Ethernet | 2 x 10/100/1000/2500 Mbps Ethernet (Intel® I225) |
| Other Ports | DIO HD Audio link via pin header |
| Expansion | |
| Expansion Interface | 1 x M.2 Key E 2230 (PCIe x1/USB 2.0) 1 x M.2 Key B 3042/3052 (PCIe x1/USB 3.2), optional |
| Operating System | |
| Operating System | Windows 10 |
| Power | |
| DC Input / Source Voltage | 2 x 2-pin connector +12V DC-in only AT auto power on function supported |
| Operating Temperature | |
| Operating Temperature | Operating Temperature -20°C to 70°C |
| Humidity Range | 10% ~ 90%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 0.5kg |
| Dimensions | 100 x 72 mm |
| Certification | |
| Certification | CE |
| Valmistaja / Brand | Axiomtek |
|---|---|
| Socket | SoC |
| Form Factor | Pico-ITX |
