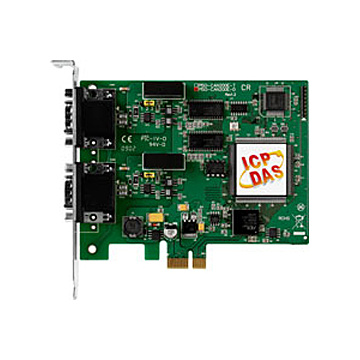

PEX-CAN200i-D CAN PCIE Card
Tuotenro
PEX-CAN200i-D_CR
Toimitusaika 8-16pv
PCI Express CAN Communication Card
Ominaisuudet
* PCI Express Interface
* Compatible with CAN 2.0 parts A and B
* Fully compatible with ISO 11898-2 standard
* Support CAN bard from 10K to 1M bps
* 2500 Vrms photo couple isolation on the CAN bus
* 33 MHz, 32 bit, X1 PCI Express bus
* Build-in jumper to select 120 ohm terminal resister
* 3KV galvanic isolation
* 2 independent CAN channels
* Direct memory mapping to the CAN
* Provide VB, VC++, Delphi, BC++
* LabView/DASYLab driver
* Driver support Windows 98/ME/NT/2K/XP/7
* Compatible with CAN 2.0 parts A and B
* Fully compatible with ISO 11898-2 standard
* Support CAN bard from 10K to 1M bps
* 2500 Vrms photo couple isolation on the CAN bus
* 33 MHz, 32 bit, X1 PCI Express bus
* Build-in jumper to select 120 ohm terminal resister
* 3KV galvanic isolation
* 2 independent CAN channels
* Direct memory mapping to the CAN
* Provide VB, VC++, Delphi, BC++
* LabView/DASYLab driver
* Driver support Windows 98/ME/NT/2K/XP/7
| I/O | CAN bus |
|---|---|
| Valmistaja / Brand | ICP DAS |
| Connection | PCIEx1 |
