PET-7H16M

Tuotenro

PET-7H16M

Toimitusaika 14-22pv

Ethernet High Speed Data Acquisition Module with 8-ch AI, 4-ch DI, 4-ch DO and PoE

Skip to the end of the images gallery

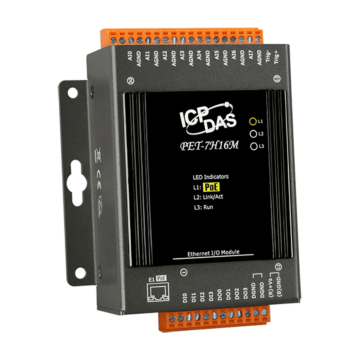

main product photo

Skip to the beginning of the images gallery

8 Single-ended Analog Input Channels (16-bit Resolution)
16-bit ADC with Built-in Anti-aliasing Filter
Supports Real Sample and Hold
Sample Rate up to 200 kS/s
4 x DO and 4 x DI Channels
1 x High-Speed Counter and 4 x Low-Speed Counters (32-bit)
Continuous and N Data Sample Data Transmission Mode
A/D Trigger Mode
1. Software Trigger
2. External Digital Signal Event Trigger
3. Pre-Trigger/Post-Trigger/Delay-Trigger
4. Analog Input Trigger
5. External Clock Signal Synchronization A/D Acquisition
Software Support
1. Supported Operating Systems
  Windows 7/8/10 and Linux
2. Software Compatibility
  1. Microsoft VC, C#, VB.NET SDK API and Demo
  2. NI LabVIEW Toolkit and Demo for Windows
  3. C/C++ library and Demo for Linux
Built-In 10/100BASE-T Auto-negotiating, Auto MDI/MDI-X Ethernet Port
Option for External Power Supply or POE Supply

Lisätietoja
I/O	Multi I/O
Valmistaja / Brand	ICP DAS
Connection	Modbus TCP
