PET-7H24M

Tuotenro

PET-7H24M

Toimitusaika 14-22pv

Ethernet High Speed Data Acquisition Module with 4 x AI, 2 x AO, 3 x DI, 4 x DO, 1 x Encoder and PoE

Skip to the end of the images gallery

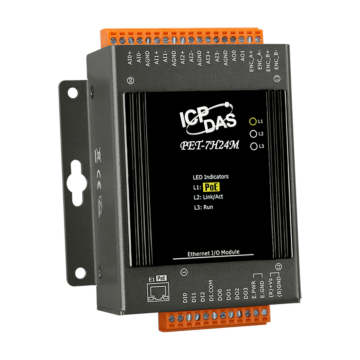

main product photo

Skip to the beginning of the images gallery

4 differential Analog Input Channels (24-bit Resolution)
24-bit ADC with Built-in Sinc3 Filter
Supports Real Sample and Hold
Sample Rate up to 128 kS/s
2 x AO, 4 x DO, 3 x DI and 1 x Encoder Channels
Continuous and N Data Sample Data Transmission Mode
A/D Trigger Mode
1. Software Trigger
2. Analog Input Trigger
Software Support
1. Supported Operating Systems
  Windows 7/8/10 and Linux
2. Software Compatibility
  1. Microsoft VC, C#, VB.NET SDK API and Demo
  2. NI LabVIEW Toolkit and Demo for Windows
  3. C/C++ library and Demo for Linux
Built-In 10/100BASE-T Auto-negotiating, Auto MDI/MDI-X Ethernet Port
Option for External Power Supply or POE Supply

Lisätietoja
I/O	Multi I/O
Valmistaja / Brand	ICP DAS
Connection	Modbus TCP
