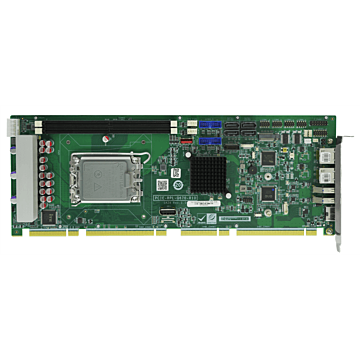

PCIE-RPL-Q670
Tuotenro
PCIE-RPL-Q670
Toimitusaika 21-30pv
Full-size PICMG 1.3 CPU Card supports LGA1700 Intel® 12th/13th/14th Gen. Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU with Q670E, DDR5, HDMI™, DP, Dual Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, HD Audio
- Full-size PICMG 1.3 CPU Card supports LGA1700 Intel® 12th/13th/14th Gen. Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU with Q670E
- Support two 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs
- Support Intel® I226-LM and Intel® I226V 2.5GbE controller
- Support M.2 M key expansion
| Form Factor | |
| Form Factor | PICMG 1.3 Full-Size |
| System | |
| Processor | LGA1700 socket supports 12th/13th/14th generation Alder Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W) |
| Security Hardware | Support TPM 2.0 (TPM-IN03 module) & Intel PTT |
| Chipset | Intel® Q670E/Q670 |
| Storage | 4 x SATA-600, support RAID 0/1/5/10 |
| Memory | 2 x DDR5-5200MHz non-ECC U-DIMM, up to 96GB |
| Graphics | Intel® integrated Gfx graphic engine |
| I/O Ports | |
| USB 2.0 | 4 x USB 2.0 (Internal pin headers) |
| USB 3.0 | 2 x USB 3.2 Gen2x1 (Rear I/O) 4 x USB 3.2 Gen1x2 (Internal box header) |
| Serial | 2 x RS-232 (internal pin headers) 2 x RS-232/422/485 (internal pin headers) |
| Video | 1 x HDMI™ : HDMI1.4 4K@30Hz |
| Ethernet | LAN1: Intel® I226-LM 2.5GbE controller LAN2: Intel® I226-V 2.5GbE controller |
| Other Ports | DIO : 12-bit digital I/O 1 x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| Expansion | |
| Expansion Interface | 1 x M.2 M Key (2242/2280, PCIe Gen3 x4 ) NVMe support |
| Operating System | |
| Operating System | Windows10 , Linux |
| Power | |
| Power Input | |
| Power Requirements | 3.3V@2.39A, 5V@9.68A, 12V@6.56A, 5VSB@0.35A (Intel® Core™ i9-12900 CPU with 16 GB 5600 MHz DDR5 memory, EuP mode disabled) |
| Operating Temperature | |
| Operating Temperature | Operating Temperature -10°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | |
| Dimensions | 338mm x 126mm |
| Certification | |
| Certification | CE |
| Valmistaja / Brand | IEI |
|---|---|
| Socket | LGA1700 |
| Form Factor | PICMG 1.3 |
