P1201 CDS PC Module

Muokkaa P1201 CDS PC Module
P1201-X

* Pakolliset kentät

Tuote
P1201 CDS PC Module
P1201 CDS PC Module

0,00 EUR

Yhteenveto
    Tuotenro
    P1201-CDS-PC
    Varastossa

    0,00 EUR

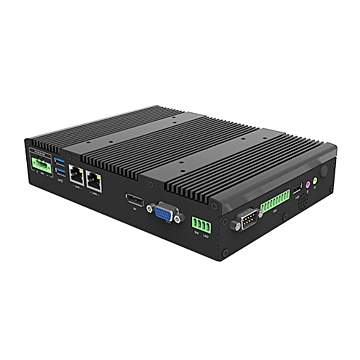

    Intel® Elkhart Lake Atom® x6000E Series Processor Slim Embedded Computer with CDS Technology

    • Intel® Elkhart Lake Atom® x6425E/x6211E Processor
    • 1x DDR4 SO-DIMM
    • 1x M.2 Key E Type 2230 Socket for Intel® CNVi/Wireless Module
    • CFM Technology for Power Ignition Sensing Function and PoE Function
    System
    Processor Intel® Atom® x6425E Processor (1.5M Cache, up to 3.00 GHz, 12W)
    Intel® Atom® x6211E Processor (1.5M Cache, up to 3.00 GHz, 6W)
    CPU Performance
    Security Hardware
    Chipset SoC
    Storage 1x 2.5” SATA3 HDD/SSD Bay
    Memory 1x DDR4 SO-DIMM Socket, support up to 32 GB
    Audio Realtek® ALC888, High Definition Audio
    Graphics Integrated Intel® UHD Graphics
    Triple independent display with 1x VGA, 1x DP and 1x CDS interface
    I/O Ports
    USB 2.0 1 x USB2.0
    USB 3.0 3x USB 3.2 Gen2
    Serial 3x RS-232/422/485
    With Auto Flow Control (Support 5V/12V), DB9
    Video 1x Display Port (4096 x 2304)
    1x VGA
    1x CDS Interface
    Ethernet 2x GbE LAN , RJ-45 (Intel I210)
    Other Ports Mic-in/Speaker out
    8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block
    1x Remote Power On/Off Connector
    Expansion
    Expansion Interface 1x 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CNVi Module
    2x CFM interface (IGN & PoE)
    1x Full-size Mini-PCIe Sockets
    1x SIM Socket
    1x Convertible Display System (CDS) Interface
    Operating System
    Operating System Windows® 10 / LINUX
    Power
    DC Input / Source Voltage Power Input Voltage 9~48VDC
    Operating Temperature
    Operating Temperature -40°C ~ +70°C with W.T. SSD, Memory
    Shock/Vibration Shock: Operating, 50 Grms
    Vibration: Operating, 5 Grms, 5-500 Hz, 3 Axes
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 1.6 kg
    Dimensions 204.5 x 149 x 41.5 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Display module with CDS
    Desk / Wall mounting
    Peripherals & Devices
    Accessories
    Extra Features
    Certification
    Certification CE, UKCA, FCC, ICES-003 Class A
    EN61000-6-4, EN61000-6-2
    Lisätietoja
    JäähdytysFanless
    CPU FamilyElkhart Lake (Atom/Celeron/Pentium)
    Operating TempWide Temp -40..70C
