NWPanel 701
Tuotenro
NWPanel-701-x
Varastossa
614,95 EUR 490,00 EUR

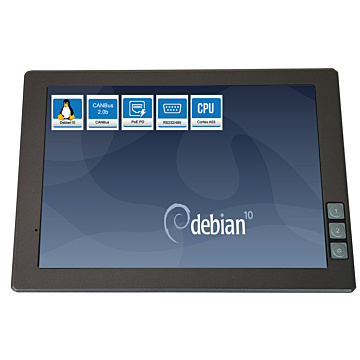

7" Touch Panel PC with i.MX8 CPU
- i.MX 8M Mini Cortex-A53 1.6Ghz
- 2GB RAM + 16GB Flash ROM
- 1280*800 res, 800nits High-Brightness LCD
- 2x LAN, USB, COM, CANbus2.0B, GPIO
- WLAN & BT5.0, Optional 4G LTE
- Linux Debian10 OS
| System | |
| Processor | NXP i.MX 8M Mini Cortex-A53 1.6Ghz Quod-core |
| Memory | 2GB RAM / 16GB Flash ROM 4GB RAM / 64GB Flash ROM (Optional) |
| GPU | 3D GPU (1x shader,OpenGL ES2.0), 2D GPU |
| Storage | Micro SD Card Slot (max 512GB capacity) |
| Expansion | Wifi & BT5.0 4G LTE (optional) SIM slot Micro SD Card Slot |
| Display | |
| Screen Size | 7" TFT LCD |
| Screen Resolution | 1280x800 |
| Display Ratio | 16::9 |
| Contrast Ratio | - |
| Brightness | 800 nits |
| Viewing Angle | 170 / 170 |
| Number of Colors | |
| Touch Screen | |
| Touchscreen | PCAP (Multitouch) |
| I/O Ports | |
| USB 2.0 | 2x USB2.0 (host) |
| USB C-type | 1 x USB C-type |
| Serial | 2 x RS-232 1 x RS-485 |
| Video | - |
| Ethernet | 1 x 10/100/1000 Mbps Ethernet (with PoE input), RJ-45 1 x 10/100 Mbps Ethernet, RJ-45 |
| Other Ports | 3.5mm earphone jack Speaker |
| Operating System | |
| Operating System | Debian Linux 10 Android 9 (optional) |
| Power | |
| DC Input / Source Voltage | 9-36V DC PoE power input 230V AC-DC adapter (optional) |
| Power Comsumption | <13W power consumption |
| Operating Temperature | |
| Operating Temperature | -10ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 800g |
| Dimensions | 206mm x 144mm x 31mm |
| Enclosure | |
| Protection | ISO 7637-2 |
| Material | Aluminium alloy / Plastic |
| Mounting | Panel, VESA75 |
| Certification | |
| Certification | CE |
| Jäähdytys | Fanless |
|---|---|
| Näytön koko | 7" |
| Kosketusominaisuuden tyyppi | Projected Capasitive (PCAP) |
