NISE 105A
Tuotenro
nise105a
Toimitusaika 14-22pv

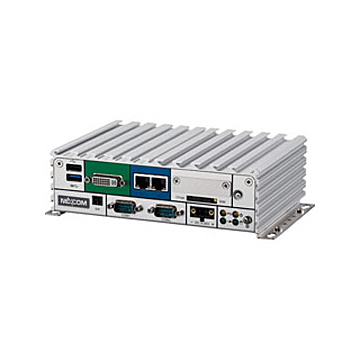

Intel® Atom Processor E3826 Dual Core Fanless System
Ominaisuudet
* Onboard Intel® Atom processor E3826 dual core, 1.46GHz
* Dual Independent Display from DVI-I and HDMI
* 2 x Intel® I120IT LAN ports support WoL, Teaming and PXE
* 2 x USB2.0 & 1 x USB3.0
* 4 x COM ports (COM1&COM2 with RS232/422/485, jumper-free setting)
* 1 x Optional Interface for optional Wi-Fi/3.5G/Automation modules
* External RTC battery holder for easy replacement
* Support -20 ~ 70 degree C extended operating temperature
* Support 9-30VDC input
* Dual Independent Display from DVI-I and HDMI
* 2 x Intel® I120IT LAN ports support WoL, Teaming and PXE
* 2 x USB2.0 & 1 x USB3.0
* 4 x COM ports (COM1&COM2 with RS232/422/485, jumper-free setting)
* 1 x Optional Interface for optional Wi-Fi/3.5G/Automation modules
* External RTC battery holder for easy replacement
* Support -20 ~ 70 degree C extended operating temperature
* Support 9-30VDC input
Pakkaus sisältää
NISE 105A
*1.46GHz Intel E3826 dual core
*4GB RAM
*1.46GHz Intel E3826 dual core
*4GB RAM
Spesifikaatiot
| System | |
| Processor | Intel® Atom processor E3826 Dual Core, 1.46GHz |
| CPU Performance | |
| Security Hardware | |
| Chipset | SoC |
| Storage | 1 x 2.5" SATA HDD 1 x External CFast socket |
| Storage Support | |
| Memory | 1 x DDR3L SO-DIMM Socket, Support DDR3L 1066/1333 4GB RAM max., un-buffered and non-ECC |
| Graphics | 1 x HDMI 1 x DVI-I |
| I/O Ports | |
| USB 2.0 | 1 x USB 2.0 |
| USB 3.0 | 1 x USB 3.0 |
| Serial | 2 x RS-232/422/485 2 x RS-232 |
| Video | 1 x DVI-I 1 x HDMI |
| Ethernet | 2 x Intel® I120IT LAN ports support WoL, Teaming and PXE |
| Other Ports | 1 x remote power switch 1 x Audio (MIC-in/Line-out) |
| Expansion | |
| Expansion Interface | 1 x Mini-PCIe socket for optional Wi-Fi/3.5G/Hilscher automation modules 1 x SIM Card holder |
| Operating System | |
| Operating System | Win7/Win10, Linux |
| Power | |
| DC Input / Source Voltage | 9-30VDC input |
| Operating Temperature | |
| Operating Temperature | Operating Temperature -20°C to 70°C, with Wide-Temp SSD |
| Humidity Range | 10% ~ 90%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | |
| Dimensions | 185mm (W) x 131mm (D) x 54mm (H) |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk/Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE |
