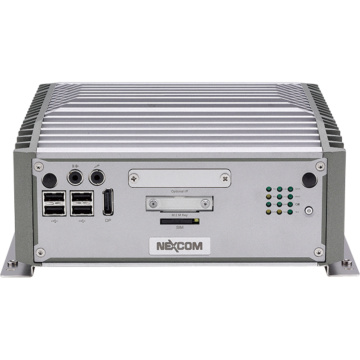

NISE 3900R
Tuotenro
NISE 3900R
Toimitusaika 14-22pv
0,00 EUR
8th Generation Intel® Core™ i7/i5/i3 LGA Fanless System
| System | |
| Processor | Support 8th generation Intel® Core™ i7/i5/i3 LGA socket type embedded processor |
| CPU Performance | - Core™ i7-8700T, 6 Core, 2.4GHz, 12M Cache - Core™ i5-8500T, 6 Core, 2.1GHz, 9M Cache - Core™ i3-8100T, 4 Core, 3.1GHz, 6M Cache |
| Security Hardware | |
| Chipset | Intel® Q370 |
| Storage | 2 x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 1 x Internal M.2 socket (M-key SATA 3.0, PCIe x4) |
| Storage Support | |
| Memory | 2 x DDR4 SO-DIMM slot, up to 16GB |
| Graphics | |
| I/O Ports | |
| USB 2.0 | 4 x USB2.0 |
| USB 3.0 | 6x USB 3.1 |
| Serial | 2x RS-232/422/485 |
| Video | 1 x DVI-D, 1 x DP 1 x HDMI |
| Ethernet | 3x GbE LAN , RJ-45 |
| Other Ports | Mic-in/Line-out 1x Remote Power On/Off Connector |
| Expansion | |
| Expansion Interface | 1 x Internal M.2 (B-key) support optional LTE 1x SIM Socket |
| Operating System | |
| Operating System | Windows® 10 |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~30VDC |
| Operating Temperature | |
| Operating Temperature | -5°C ~ +55°C with W.T. SSD, 35W TDP CPU |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 5.1 kg |
| Dimensions | 215 x 272 x 94 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | Optional Modules |
| Extra Features | |
| Certification | |
| Certification | CE, FCC certified |
