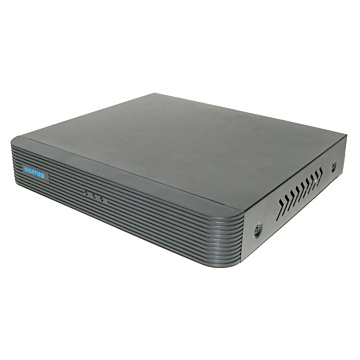

Niceview XVR Digitaalitallennin DVR516
Tuotenro
dvr516
Varastossa
246,95 EUR 196,77 EUR
- 16-Kanavainen XVR-digitaalitallennin (DVR).
- Tukee max 16kpl HD-TVI, CVI, AHD ja CVBS valvontakameraa.
- Tukee max 8kpl IP-verkkokameraa.
- Max 5MP (2560x1920) tallennustarkkuus.
- Internet etäkatselu Windows ja Android laitteet.
- RJ45/HDMI/VGA/USB/Audio/RS-485.
- Verkkovirtalähde AC/DC12V mukana.
| Video/Audio Input | ||
| Analog Video Input | 16-ch, BNC | |
| IP Video Input | 8-ch(only IP up to 24ch), each channel up to 8MP | |
| Supported Analog Camera Types | Support AHD input: | |
| 5MP@12fps | ||
| 4MP@15fps | ||
| 1080P@30fps | ||
| 720P@30fps | ||
| Support TVI input: | ||
| 5MP@12fps | ||
| 4MP@15fps | ||
| 1080P@30fps | ||
| 720P@30fps | ||
| Support CVI input: | ||
| 4MP@15fps | ||
| 1080P@30fps | ||
| 720P@30fps | ||
| Support CVBS input | ||
| Audio Input | 1-ch, RCA | |
| Two-way Audio | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 40Mbps | |
| Outgoing Bandwidth | 64Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE | |
| Video/Audio Output | ||
| VGA Output | 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| HDMI Output | 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | 16-ch | |
| Encoding | ||
| Recording Resolution | 5MP Lite/4MP Lite/1080P/720P/4CIF/CIF | 5MP Lite/4MP Lite /1080P/720P/4CIF/CIF |
| Recording Frame Rate | Main stream: | |
| 5MP Lite@6fps | ||
| 4MP Lite@8fps | ||
| 2MP Lite@15fps | ||
| 2MP@8fps | ||
| 720P@15fps | ||
| Sub stream: | ||
| D1@15fps(Max) | ||
| Hard Disk | ||
| SATA | 1 SATA interface | |
| Capacity | Up to 8TB for each HDD | |
| External Interface | ||
| Network Interface | 1RJ45 10M/100M self-adaptive Ethernet Interface | |
| USB Interface | Rear panel:2 x USB2.0 | |
| General | ||
| Power Supply | 12V DC | |
| Power Consumption: ≤ 8 W( without HDD ) | ||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |
| Dimensions(W×D×H) | 255mm ×215mm× 42mm (10.0" × 8.5"×1.7") | |
| Weight (without HDD) | ≤1.1 Kg ( 2.42lb ) | |
