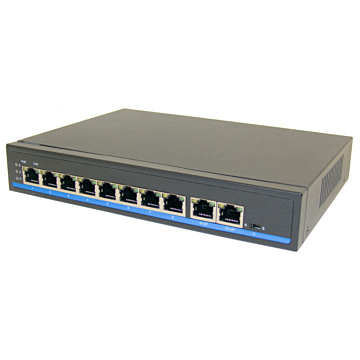

Niceview Verkkokytkin POE 8-porttia IPC-1100P
Tuotenro
ipc-1100p
Poistunut valikoimasta
90,07 EUR 71,77 EUR
- 10-porttinen Gigabit Power Over Ethernet -verkkokytkin.
- 8-porttia POE+ virransyöttö, yhteensä 120W.
- IEEE 802.03af/at.
- 2kpl RJ45 Up Link -porttia.
| Port | 8x10/100Base-TX POE port 2x10/100/1000Base-TX RJ45 port |
|
| Function | N: Standard + V: Port Isolation + S (Ultra-far Mode) | |
| Network Protocol | IEEE 802.3 IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X IEEE 802.3af/at IEEE 802.3x |
|
| POE Standard | IEEE 802.3af/at | |
| Uplink Port Specification | 10/100/1000BaseTX Auto | |
| Transmission mode | Store-and-forward | |
| Bandwidth | 16Gbps | |
| Packet Forwarding | 4.03Mbps | |
| MAC Address | 2K | |
| Buffer | 2.5M | |
| Transmission Distance | 10Base-T: CAT3,4,5 UTP max 250m 100Base-TX: CAT5 or better UTP max 150m 1000Base-TX: CAT6 or better UTP max 150m |
|
| Single port Power | Average 15.4W, MAX 30W | |
| Total power | MAX 120W | |
| Power | Built-in AC: 100-240V 50-60Hz | |
| Operating temp/humidity | -10C+55C; 5% ~90% RH. | |
| Product size | 210x150mx35mm | |
| Weight | 0.8kg | |
