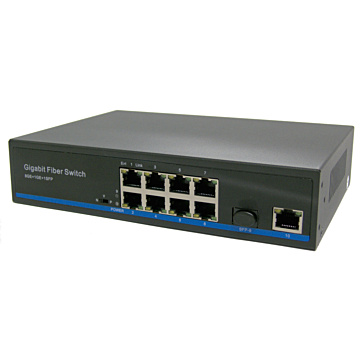

Niceview Verkkokytkin Gigabit POE 8-porttia IPC-1200P
Tuotenro
ipc-1200p
Toimitusaika 21-30pv
126,52 EUR 100,81 EUR
Gigabit Power Over Ethernet -verkkokytkin. 8-porttia POE+ virransyöttö, yhteensä 150W. IEEE 802.03af/at. Lisäksi 1kpl SFP-laajennusportti ja 1kpl RJ45 Up Link -portti. Kaikki portit 10/100/1000Mbps yhteensopivia.
| 1000M POE Rj45 | 8 | |
| 1000M SFP UP | 1xRJ45 + 1SFP | |
| Exchange Mechanism | Store-and-forward | |
| Bandwidth | 20G | |
| MAC | 8K | |
| Support | VLAN | |
| Environmental |
Working Temperature: -10℃～55℃ Storage temperature: -40℃～70℃ |
|
| Working Humidity ：10%～90% RH non-condensing Storage Humidity：5%～90% RH non-condensing |
||
| Power input | AC 100-265V 50/60Hz 3.5A MAX150W | |
| POE | IEEE802.3af/at, Port PoE MAX 30W， | |
| Standards Protocols |
IEEE 802.3 IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X IEEE 802.3af/at IEEE 802.3x |
|
| Speed |
Ethernet 10Mbps half-duplex, 20Mbps full-duplex Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex Gigabit Ethernet 2000Mbps full-duplex |
|
| Network Media |
10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m) 100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m) 1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤150m) 1000Base-SX:62.5μm/50μm MMF(2m~550m) 1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) |
|
| Product specifications | Product Size：210mm*140mm*45mm（L*W*H） package Size：300mm*180mm*97mm（L*W*H） Weight:1.4kg |
|
