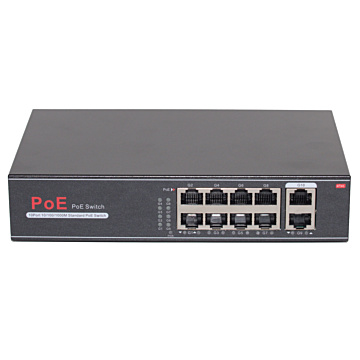

Niceview Verkkokytkin Gigabit POE+ 8-porttia 2xUplink 120W IPC-1201P
Tuotenro
ipc-1201p
Varastossa
130,56 EUR 100,20 EUR 79,84 EUR
- 10-porttinen Gigabit Power Over Ethernet -verkkokytkin.
- 8-porttia POE+ virransyöttö, yhteensä 120W.
- IEEE 802.03af/at.
- 2kpl RJ45 Up Link -porttia.
| 1000M POE Rj45 | 8 | |
| 1000M UPLINK | 2xRJ45 | |
| Exchange Mechanism | Store-and-forward | |
| Bandwidth | 20G | |
| MAC | 2K | |
| Environmental |
Working Temperature:
-20℃～55℃ Storage temperature: -40℃～70℃ |
|
| Working Humidity ：10%～90% RH non-
condensing Storage Humidity：5%～90% RH non-condensing |
||
| Power input | Built-in power supply, AC100~240V 50-60Hz 2.2A | |
| POE | IEEE802.3af/at, Port PoE MAX 30W, total 120W | |
| Standards Protocols |
IEEE802.3
10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x |
|
| Speed |
Port 1-10 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption | |
| Network Media |
10BASE-T:Cat3,4,5
UTP(≤100 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) 1000BASE-T : Cat5e or later UTP(≤100 meter) |
|
| Product specifications | Product Size：195*130*40mm（L*W*H） Weight: 1.2kg |
|
| Product installation | Desktop, wall mount. | |
