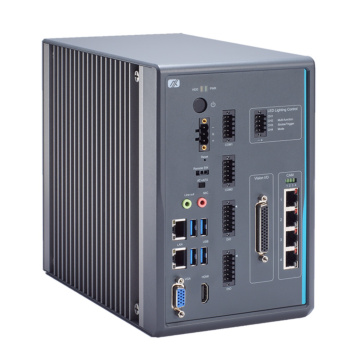

    Fanless Vision System with LGA1151 Socket 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor, Intel® Q170, Vision I/O, 4-CH PoE and 4-CH LED Output
    System
    Processor 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processors, up to 65W (Kaby Lake/Skylake)
    CPU Performance - Core™ i7-6700/T
    - Core™ i5-6500/T
    - Core™ i3-6100/T
    Security Hardware
    Chipset Intel® Q170
    Storage 2 x 2.5” SATA HDD/SSD Bay
    Storage Support
    Memory 2 x DDR4 SO-DIMM slot, up to 32GB
    Graphics
    I/O Ports
    USB 2.0 1 x USB2.0 internal
    USB 3.0 4x USB 3.0
    Serial 2x RS-232/422/485
    Video 1 x HDMI
    1 x VGA
    Ethernet 3x GbE LAN , RJ-45
    Other Ports 8/8 DIO with isolated 1.5kVDC protection
    Mic-in/Line-out
    1x Remote Power On/Off Connector
    Vision I/O 4-CH trigger input (response time<1us, sink type, input range: 0 to 30V)
    - 4-CH trigger output (response time<1us, sink type, open collector, output range: 0 to 30V, 100mA max./CH)
    - 4-CH LED lighting control (strobe mode: 24V, 1A per CH/trigger mode: 24V, 0.5A per CH)
    - 2-CH quadrature encoder input (A/B/Z)- 8-CH isolated DI (sink/source type, input range: 0 to 30V)
    - 8-CH isolated DO(sink type, open collector, supply voltage: 5-30V, 200mA max./CH)
    - Programmable interrupt functions
    Camera Interface 4 x IEEE802.3at GbE LAN port (PoE, Intel® i210-AT, IEEE802.3at compliant, total max. power output 60W)
    Expansion
    Expansion Interface 1 x Full-size PCI Express Mini Card slot with USB & PICe signal
    1 x M.2 2280 Key M slot, PCIe X4 Gen3 for NVMe SSD
    Operating System
    Operating System Windows® 10
    Power
    DC Input / Source Voltage Power Input Voltage 24VDC
    -230V AC-DC power adapter
    Operating Temperature
    Operating Temperature -10°C ~ +60°C with W.T. SSD, 35W TDP CPU
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 5.0 kg
    Dimensions 135 x 210 x 230 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk / Wall mounting
    Peripherals & Devices
    Accessories Optional Modules
    Extra Features
    Certification
    Certification CE, FCC certified
    Lisätietoja
    JäähdytysFanless
