MVS100-323
Tuotenro
MVS100-323
Toimitusaika 21-30pv
0,00 EUR

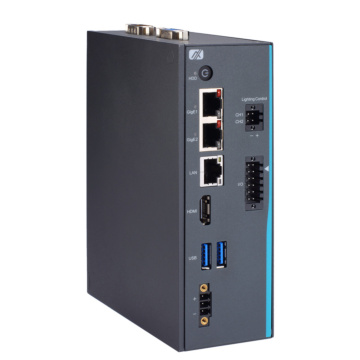

Mini Vision System with Intel Atom® x5-E3940 Processor, Vision I/O, 2-CH PoE and 2-CH LED Output
- Integrated real-time vision I/O
2-CH trigger input
2-CH trigger output
2-CH LED lighting control
4-CH isolated DIO - Supports camera interfaces
2 IEEE802.3af GbE LAN ports (PoE) - Power input: 24 VDC
- -10°C to +55°C operating temperature range
- Supports TPM 2.0 function
| System | |
| Processor | Intel® Atom® x5-E3940 processor (1.6GHz) |
| Security Hardware | TPM2.0 |
| Chipset | SoC |
| Storage | mSATA (Full-size PCI Express Mini Card slot) |
| Memory | 1 x 204-pin DDR3L-1866 SO-DIMM, up to 8GB |
| Graphics | |
| I/O Ports | |
| USB 2.0 | |
| USB 3.2 | 2 x USB 3.2 Gen1 |
| Serial | 1x RS-232/422/485 |
| Video | 1 x HDMI 1 x VGA |
| Ethernet | 1 x 10/100/1000 Mbps Ethernet (Intel® i211-AT) |
| Other Ports | 1x Remote Power On/Off Connector |
| Vision I/O | 2-CH trigger input (dry or wet contact, sink/source
type, input range: 0 to 30V) 2-CH trigger output (sink type, open collector, supply voltage:5 to 30V, 100mA max./CH) 2-CH LED lighting control (12V/24V, max. 0.5A per CH) 2-CH isolated DI (dry or wet contact, sink/source type, input range: 0 to 30V) 2-CH isolated DO (sink type, open collector, supply voltage: 5 to 30V, 100mA max./CH) Programmable interrupt functions |
| Camera Interface | 2 x IEEE802.3af GbE LAN port (PoE, Intel® i210-AT, IEEE802.3af compliant, total max. power output 16W) |
| Expansion | |
| Expansion Interface | - |
| Operating System | |
| Operating System | Windows® 10 |
| Power | |
| DC Input / Source Voltage | 3-pin terminal block Type: ATX/AT Input: 24 VDC±10% |
| Operating Temperature | |
| Operating Temperature | -10°C ~ +55°C with W.T. SSD |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 0.6 kg |
| Dimensions | 53.2 x 155 x 110.3 mm |
| Enclosure | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Certification | |
| Certification | CE, FCC certified |
| Jäähdytys | Fanless |
|---|
