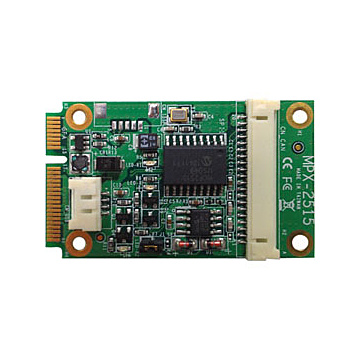

MPX-2515
Tuotenro
MPX-2515
Toimitusaika 21-30pv
PCI Express mini card support CAN 2.0B
Pakkaus sisältää
MPX-2515
*OAL-2515 DB9 connector cable
*OAL-2515 DB9 connector cable
Spesifikaatiot
Controller
*CYPRESS CY8C24794-24LTXI PSoC
*Microchip MCP-2515 CAN Controller
*Microchip MCP-2551 High-Speed CAN Transceiver
Features
* USB 2.0 Full Speed
* Controller Area Network V2.0B
* Implements ISO-11898 Standard Physical Layer
* Supports 1 Mb/s operation (125 Kbps default)
* Receive buffers, masks, filters, and data byte filtering
* Supports one-shot mode
* 5 mA active current (typical); 1uA standby current (typical) (sleep mode)
* Power-on Reset and voltage brown-out protection
* Detection of ground fault (permanent Dominant) on TXD input
* Up to 112 nodes can be connected
* 120 Ohm line termination; enabled/disabled by jumper
* IEC 61000-4-2 (ESD) ± 15KV (air/contact)
* IEC 61000-4-4 (EFT) 50A (5/50ns)
Software
*Support Windows 32/64-bit ver
*Provide API and SDK for Windows
*CYPRESS CY8C24794-24LTXI PSoC
*Microchip MCP-2515 CAN Controller
*Microchip MCP-2551 High-Speed CAN Transceiver
Features
* USB 2.0 Full Speed
* Controller Area Network V2.0B
* Implements ISO-11898 Standard Physical Layer
* Supports 1 Mb/s operation (125 Kbps default)
* Receive buffers, masks, filters, and data byte filtering
* Supports one-shot mode
* 5 mA active current (typical); 1uA standby current (typical) (sleep mode)
* Power-on Reset and voltage brown-out protection
* Detection of ground fault (permanent Dominant) on TXD input
* Up to 112 nodes can be connected
* 120 Ohm line termination; enabled/disabled by jumper
* IEC 61000-4-2 (ESD) ± 15KV (air/contact)
* IEC 61000-4-4 (EFT) 50A (5/50ns)
Software
*Support Windows 32/64-bit ver
*Provide API and SDK for Windows
Tiedostot ja ajurit
| I/O | CAN bus |
|---|---|
| Valmistaja / Brand | Commell |
| Connection | mPCIe |
