MIO-5373U
Tuotenro
MIO-5373U-xxx
Toimitusaika 21-30pv
0,00 EUR

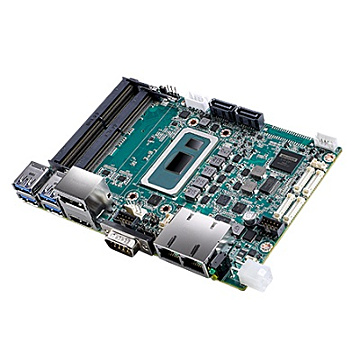

8th Gen. Intel® Core i7/i5/i3/Celeron 3.5" SBC w/ MIOe
- 8th Gen. Intel Core Processor with Quad/Dual Cores, TDP 15W
- Dual Channel DDR4-2400 up to 32GB, onboard eMMC up to 64GB
- Triple simultaneous displays by 48-bit LVDS/eDP+HDMI+DP
- 2 GbE, 4 USB3.1, CAN Bus, M.2 M-Key 2280 supports NVMe, DC-in 12-24V
- Supports iManager, SUSI APIs, WISE-DeviceOn and Edge AI Suite
| Form Factor | |
| Form Factor | 3.5” SBC |
| System | |
| Processor | Intel® Core™ i7-8665UE , 4-Core, 1.75Ghz Intel® Core™ i5-8365UE , 4-Core 1.6Ghz Intel® Core™ i3-8145UE, 2-Core 2.20Ghz |
| Integrated Graphics | Integrated Intel® UHD Graphics 620 |
| Security Hardware | |
| Chipset | SoC, Intel 300 Series Chipset |
| Storage | 1 x SATA-600 |
| Storage Support | eMMC 32GB |
| Memory | 2 x 240 Pin DDR4 SO-DIMM, max 32GB |
| I/O Ports | |
| USB 2.0 | 2 x USB 2.0 |
| USB 3.1 | 4 x USB3.1 |
| USB 3.2 | |
| Serial | 1 x RS-232/422/485 |
| Video | 1 x HDMI 1 x Display Port LVDS 48bit |
| Ethernet | 2 x 10/100/1000 Mbps (Intel i219, i210) |
| Other Ports | 2 x GPIO 1 x CAN Bus 2.0 3 Audio Line-Out, Line-In, Mic-in 1 x I2C |
| Expansion | |
| Expansion Interface | 1 x M.2 Slot E-Key 2230 1 x M.2 Slot B-Key 2280 MIO extension |
| Operating System | |
| Operating System | Windows 10, Linux |
| Power | |
| DC Input / Source Voltage | 12V DC Input |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 0.5kg |
| Dimensions | 146 x 102 mm |
| Certification | |
| Certification | CE |
| Socket | SoC |
|---|---|
| Form Factor | 3.5" Embedded |
