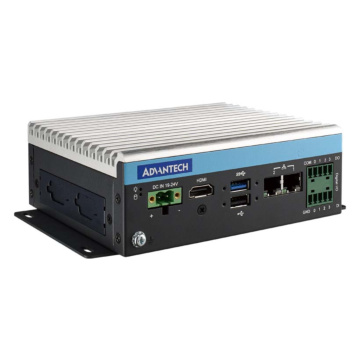

MIC-710AIX
Tuotenro
MIC-710AIX
Toimitusaika 14-22pv
0,00 EUR
AI System Based onNVIDIA® Jetson™ Xavier NX
- Fanless compact design
- Embedded with NVIDIA® Jetson™ Xavier NX up to 21 TOPS
- Supports 2 x GbE, 1 x USB 3.0 , 1 x USB 2.0
- Supports 1 x mPCIe, 1 x M.2 2280 (SATA interface)
- Supports Allxon 24/7 remote monitoring and OTA deployment; Azure Certified Devices
| System | |
| Processor | ARMv8.2 (64-bit) heterogeneous multi-processing (HMP) CPU architecture | 3 x dual-core CPU clusters(six NVIDIA Carmel processor cores) (Max. Operating Frequency: 1.9 Ghz |
| GPU / Graphics | 384 CUDA Core, 48 Tensor Cores, Performance up to 21
TOPS (INT8) Max. operating frequency: 1100 Mhz |
| Security Hardware | |
| Chipset | SoC |
| Storage | 16G of eMMC 1 x M.2 2280 (M Key) 1 x Micro SD |
| Memory | 8 GB 128-bit LPDDR4x DRAM |
| I/O Ports | |
| USB 2.0 | 1 x USB2.0 1 x USB2.0 (internal) |
| USB 3.0 | 1x USB 3.0 |
| Serial | 1 x RS-232/RS-422/RS-485 |
| Video | 1 x HDMI |
| Ethernet | 2 x 10/100/1000 Mbps (Intel® i211) |
| Other Ports | DIO, 4x input, 4x output |
| Expansion | |
| Expansion Interface | 1 x mPCiE |
| Operating System | |
| Operating System | Linux (Ubuntu 18.04 with JetPack) |
| Power | |
| DC Input / Source Voltage | 19-24V DC |
| Operating Temperature | |
| Operating Temperature | -10°C ~ +60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.2 kg |
| Dimensions | 147 x 118 x 52 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum , metal |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE/FCC/BSMI |
| Jäähdytys | Fanless |
|---|
