MIC-710AI
Tuotenro
MIC-710AI
Toimitusaika 21-30pv

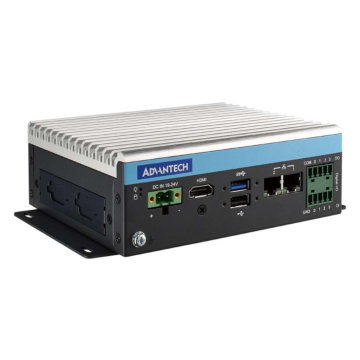

AI Inference System Based on NVIDIA® Jetson Nano™
- Fanless compact design
- Embedded with NVIDIA® Jetson™ NANO up to 472 GOPS
- Supports 2 x GbE, 1 x USB 3.0 , 1 x USB 2.0
- Supports 1 x mPCIe, 1 x M.2 2280 (SATA interface)
- Supports Allxon 24/7 remote monitoring and OTA deployment; Azure Certified Devices
- Fanless and compact design
- NVIDIA Jetson® NANO embedded
- 2 x LAN port embedded
- Linux OS with BSP (board support package)
- Supports deep learning trained models
- Wide-operating temperature range
| System | |
| Processor | Quad Core ARM Cortex A57 (Max. Operating Frequency: 1.43GHz) |
| GPU / Graphics | Maxwell GPU, 128 CUDA core, Performance up to 512 GFLOPS |
| Security Hardware | |
| Chipset | SoC |
| Storage | 16G of eMMC 1 x M.2 2280 (M Key) 1 x Micro SD (Support for SD 4.0 Specification without UHS-II) |
| Memory | 4GB LPDDR4 |
| I/O Ports | |
| USB 2.0 | 1 x USB2.0 1 x USB2.0 (internal) |
| USB 3.0 | 1x USB 3.0 |
| Serial | 1 x RS-232/RS-422/RS-485 |
| Video | 1 x HDMI |
| Ethernet | 2 x 10/100/1000 Mbps (Intel® i211) |
| Other Ports | DIO, 4x input, 4x output |
| Expansion | |
| Expansion Interface | 1 x mPCiE, iDoor |
| Operating System | |
| Operating System | Linux (Ubuntu 18.04 with JetPack) |
| Power | |
| DC Input / Source Voltage | 19-24V DC |
| Operating Temperature | |
| Operating Temperature | -10°C ~ +60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.2 kg |
| Dimensions | 147 x 118 x 52 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum , metal |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE/FCC/BSMI |
| Jäähdytys | Fanless |
|---|
