MEC-LAN-PL502P
Tuotenro
MEC-LAN-PL502P
Toimitusaika 21-30pv

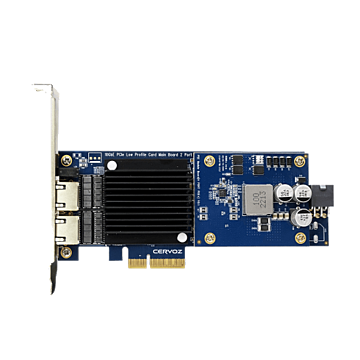

Dual 10GbE Low Profile Ethernet Card (0℃~+55℃) with PoE+ Module, PCIex4
- Quad-Lane (x4) PCI-Express with throughput up to 8 GT/s
- Fully compliant with PCI-Express Base Specification Rev. 3.0
- Integrated 100Mbps/ 1000Mbps/ 10Gbps transceiver
- Support dual isolated GbE LAN ports
- Dual independent PSE channels
- Complies with IEEE 802.3af
- Supports power input 12V~24V from 6pin PCIE-ATX
- External PoE+ module power supply
| System | |
| Controller | Intel X550-AT2 x1 |
| Connector | 2x RJ45 |
| Bus Type | PCIex4 |
| Data rate | 10/100/1000Mbs/ 10Gbs |
| Cooling method | Passive Heatsink |
| PoE Power/port | 25.5W |
| Physical Characteristics | |
| Height | Half Height, Full size bracket |
| Protocol Support | |
| IEEE 802.3anfor 10GBase-T IEEE 802.3u for 100Base-T(X) IEEE 802.3ab for 1000Base-T IEEE 802.3bz for NBASE-T(support for 2.5GbE and 5.0GbE),NBASE-T in Linux Only IEEE 801.1Q (VLAN) IEEE 802.1ad (Double VLAN) IEEE 1588 IEEE 802.1AS Support for Data Center Bridging(DCB); (802.1Qaz,802.1Qbb, 802.1p) |
|
| System Support | |
| Windows 10/11 | |
| Windows Server 2016 /2019 /2022 | |
| Linux Stable Kernel version 5.x or later | |
| Environmental | |
| Operating Temperature | 0°C ~ 55°C |
| Card Slot Interface | |
| PCIe | PCI Express x4 |
| Valmistaja / Brand | Cervoz |
|---|---|
| Connection | 2x 10GBe LAN Ethernet IP |
| Data Interface | PCIEx4 |
