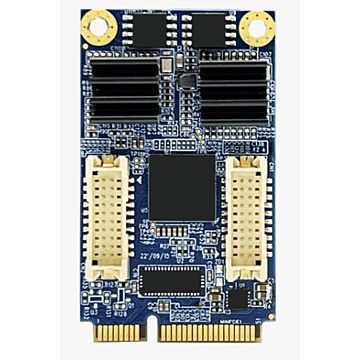

Mini-PCIe Module with 2x 2.5Gbe Isolated Ethernet LAN
Tuotenro
MEC-LAN-M602i
Varastossa
169,43 EUR 135,00 EUR
Mini PCI-e 2-port 2.5GbE isolated Ethernet board (-40℃~+85℃) / 1x Universal Bracket with 2x RJ45 Cutout
- Single Lane (x1) PCI Express with throughput to 5.0/2.5Gbps
- Fully compliant with PCI Express Base Specification Rev.2. 1
- Integrated 10/100/1000/2500Mbps transceiver
- IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3z and IEEE 802.3bz compliant
- IEEE 802.3x and IEEE 802.3z flow control
- Support Wake-on-LAN
- Complies with EN61000-4-2(ESD)Air-15kV, Contact-8kV
- Complies with EN61000-4-4(EFT)2kV
- Complies with EN61000-4-5 2kV Surge protection
| System | |
| Controller | Intel I226-IT x 2 |
| Form Factor | Mini-PCIe |
| Interface | 2x RJ-45 |
| Bus | Single-Lane x1 PCI-Express 5.0/2.5Gbps |
| Physical Characteristics | |
| Dimension | 30x50.95mm |
| Operating Temperature | -40..85C |
| Driver Support | Win10, Linux |
