mBOX603

Tuotenro

mBOX603

Toimitusaika 21-30pv

0,00 EUR

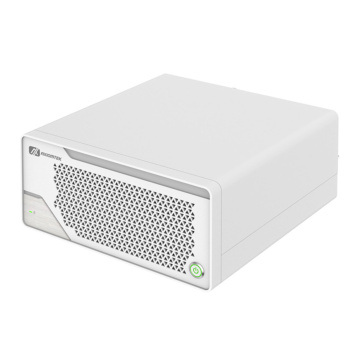

Medical Grade System with 13th Gen Intel® Core™ i9/i7/i5/i3 Processor for Smart Healthcare Applications

System
Processor	13th gen Intel® Core™ i9/i7/i5/i3 processor, up to 65W TDP
CPU Performance
Security Hardware	TPM2.0
Chipset	Intel® R680
Storage	2 x 2.5" hot-swappable SATA III drives with RAID 0/1 support 1 x M.2 Key M 2280 NVMe SSD slot
Storage Support
Memory	2 x 260-pin DDR4-3200 SO-DIMM, up to 64GB with ECC support
Graphics	Intel® UHD Graphics
I/O Ports
USB 2.0	-
USB 3.0	4x USB 3.2
Serial	2x RS-232/422/485 (with +5/12V power)
Video	2 x HDMI 1.4b (4096 x 2160 @30Hz) 1 x DisplayPort++ 1.2 (4096 x 2160 @60Hz)
Ethernet	2 x 10/100/1000/2500 Mbps Ethernet (Intel® I226-LM; Intel® AMT)
Other Ports	1 x MIC-in/Line-out
Expansion
Expansion Interface	1 x Double-width PCIe x16 slot with PCIe x8 Gen4 signal supporting various GPU cards 1 x PCIe x16 slot with PCIe x8 Gen4 signal 1 x M.2 Key E 2230 1 x M.2 Key B 3052/3042
Operating System
Operating System	Windows® 10, Linux
Power
DC Input / Source Voltage	100 to 240V AC input, 500W/900W medical-grade PSU
Operating Temperature
Operating Temperature	0°C ~ +40°C
Humidity Range	10% ~ 95%, non-condensing
Cooling System / Thermal Solution
Thermal Solution	Fan
Dimensions / Weight
Weight (kg)	7 kg
Dimensions	310 x 332 x 145mm
Enclosure
Bezel
Material
Mounting
Peripherals & Devices
Accessories
Extra Features
Certification
Certification	CE, FCC Part 18 IEC60601-1 Ed3.2 compliance
