MANO566
Tuotenro
MANO566
Toimitusaika 14-22pv

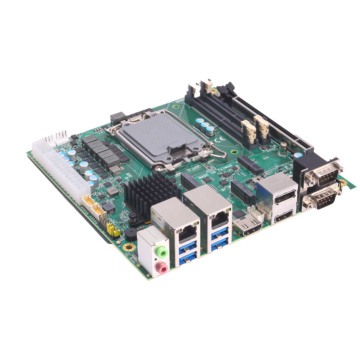

Mini-ITX SBC with LGA1700 Socket 12th Gen Intel® Core™ Processor, Intel® Q670E, 2 HDMI, DisplayPort++, eDP, 2 GbE LAN, and HD Audio
- LGA1700 socket 12th gen Intel® Core™ i7/i5/i3 processor
- Intel® Q670E chipset
- 2 DDR4 SO-DIMM for up to 64GB of memory
- 4 USB 3.2 and 4 USB 2.0
- 4 COM ports
- 2 SATA-600 and 1 M.2 Key M 2280
- 1 PCIe x16, 1 M.2 Key E 2230, and 1 M.2 Key B 3052/3042
| Form Factor | |
| Form Factor | Mini-ITX |
| System | |
| Processor | LGA1700 12th gen Intel® Core™ i9/i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors (up to 65W) |
| Security Hardware | Onboard TPM2.0 |
| Chipset | Intel® Q670E |
| Storage | 2 x SATA-600 1 x M.2 Key M 2280 with support of NVMe |
| Memory | 2 x 260-pin DDR4-3200/2666/2400 SO-DIMM, up to 64GB |
| Graphics | Intel® integrated Gfx graphic engine |
| I/O Ports | |
| USB 2.0 | 4 x USB 2.0 |
| USB 3.0 | |
| USB 3.2 | 4x USB3.2 |
| Serial | 4 x RS-232/422/485 (with +5V/+12V power) |
| Video | 1 x DisplayPort++ 1 x eDP 2 x HDMI |
| Ethernet | 2 x 10/100/1000/2500 Mbps Ethernet (Intel® I226-LM) |
| Other Ports | 8-channel in/out programmed MIC-in/Line-out |
| Expansion | |
| Expansion Interface | 1 x PCIe x16 1 x M.2 Key E 2230 1 x M.2 Key B 3052/3042 |
| Operating System | |
| Operating System | Windows11, Windows10 , Linux |
| Power | |
| Power Input | 24+4-pin ATX connector Supports AT Mode Auto Power function |
| Power Requirements | |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 0.5kg |
| Dimensions | 170mm x 170mm |
| Certification | |
| Certification | CE |
| Valmistaja / Brand | Axiomtek |
|---|---|
| Socket | LGA1700 |
| Form Factor | Mini-ITX |
