MANO560

Tuotenro

MANO560-H-S-U

Toimitusaika 14-22pv

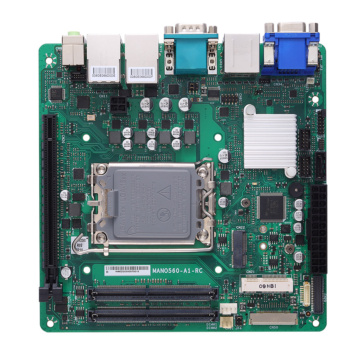

Mini-ITX SBC with LGA1700 12th Gen Intel® Core™ i9/i7/i5/i3, DisplayPort++, HDMI, VGA, LVDS, USB 3.2, M.2, and Dual GbE LAN

Form Factor
Form Factor	Mini-ITX

System
Processor	LGA1700 12th gen Intel® Core™ i9/i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors (up to 65W)
Security Hardware	Onboard TPM2.0
Chipset	Intel® H610
Storage	1 x SATA-600
Memory	2 x 266-pin DDR4-3200/2666/2400 SO-DIMM, up to 64GB
Graphics	Intel® integrated Gfx graphic engine
I/O Ports
USB 2.0	5 x USB 2.0
USB 3.0
USB 3.1	2x USB3.2 Gen1
Serial	1 x RS-232/422/485 (with +5V/+12V power) 3 x RS-232
Video	1 x DisplayPort++ 1 x HDMI 2.0 1 x LVDS 1 x VGA
Ethernet	1 x 2500/1000/100/10 Mbps Gigabit/Fast Ethernet supports Wake-on-LAN, PXE with Intel® I225-V 1 x 1000/100/10 Mbps Gigabit/Fast Ethernet supports Wake-on-LAN, PXE with Intel® I219-V
Other Ports	DIO Audio MIC-in/Line-in/Line-out
Expansion
Expansion Interface	1 x PCIe x16 1 x M.2 Key B (USB 3.2 Gen1 for 3042/3052 5G module or SATA interface for 2242 SSD) 1 x M.2 Key E 2230 1 x mini-PCIe
Operating System
Operating System	Windows10 , Linux
Power
Power Input	Standard 12V ATX power 24+4 pin ATX connector AT mode auto power function supported
Power Requirements
Operating Temperature
Operating Temperature	Operating Temperature 0°C to 60°C
Humidity Range	10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg)	0.5kg
Dimensions	170mm x 170mm
Certification
Certification	CE
