MANO321
Tuotenro
MANO321
Toimitusaika 14-22pv

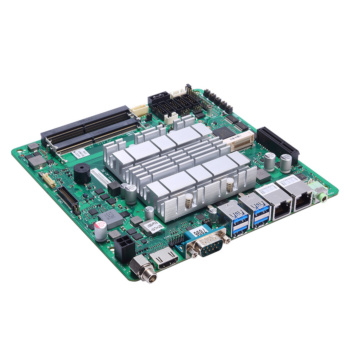

Thin Mini-ITX SBC with Intel® Celeron® Processor J6412, HDMI, VGA, LVDS, USB 3.1, Mini PCIe, M.2 Key B, and HD Audio
- Intel® Celeron® processor J6412
- 2 DDR4 SO-DIMM for up to 32GB of memory
- 1 PCIe x2 for PCIe x4 expansion slot
- 1 PCI Express Mini Card slot and PCIe x1
- 4 USB 3.1 and 4 USB 2.0
- 1 SATA-600 and 1 M.2 Key B
- Supports 6 COM
- Low profile
- 9 to 20 VDC power in
- HDMI/VGA/LVDS with triple view supported
| Form Factor | |
| Form Factor | Mini-ITX |
| System | |
| Processor | Intel® Celeron® processor J6412 |
| Security Hardware | |
| Chipset | SoC |
| Storage | 1 x SATA-600 |
| Memory | 2 x 260-pin DDR4-3200 SO-DIMM, up to 32GB |
| Graphics | Intel® integrated Gfx graphic engine |
| I/O Ports | |
| USB 2.0 | 4 x USB 2.0 (internal) |
| USB 3.0 | |
| USB 3.1 | 4 x USB 3.1 |
| Serial | 1 x RS-232/422/485 1 x RS-232 (rear IO) 4 x RS-232 (internal) |
| Video | 1 x HDMI 1 x VGA 1 x LVDS |
| Ethernet | 2 x 10/100/1000 Mbps Ethernet (Realtek RTL8111H) |
| Other Ports | DIO MIC-in/Line-in/Line-out |
| Expansion | |
| Expansion Interface | 1 x PCIe x4 slot with PCIe x2 signal 1 x M.2 Key B 1 x PCIe Mini Card slot 1 x SIM Card slot |
| Operating System | |
| Operating System | Windows10 , Linux |
| Power | |
| Power Input | 1 x 9 to 20V DC Jack 1 x 9 to 20V 4-pin ATX connector |
| Power Requirements | |
| Operating Temperature | |
| Operating Temperature | Operating Temperature -0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 0.5kg |
| Dimensions | 170 x 170 mm |
| Certification | |
| Certification | CE |
| Valmistaja / Brand | Axiomtek |
|---|---|
| Socket | SoC |
| Form Factor | Mini-ITX |
