LRES3039PF-OCP
Tuotenro
LRES3039PF-OCP
Toimitusaika 21-30pv

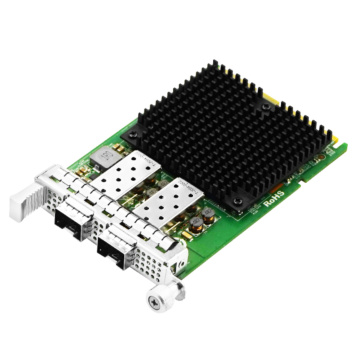

OCP 3.0 Dual-port 10G SFP+ Ethernet Network Adapter (Intel X710)
| System | |
| Controller | Intel chip (X710) |
| Connector | 2x 10G SFP+ |
| Fiber type | 10GBASE-SR /10GBASE-LR /10GBASE-Cu 1GBASE-SR /1GBASE-LR /1GBASE-Cu |
| Bus Type | OCP3.0 SFF |
| Data rate | 1/10Gbps |
| Cooling method | Passive Heatsink |
| PoE Power/port | |
| Physical Characteristics | |
| Height | SFF 115x76x1.6mm |
| Protocol Support | |
| IEEE 802.3ae 10 Gigabit Ethernet over fiber IEEE 802.3z Gigabit Ethernet IEEE 802.3x Full Duplex and flow control IEEE 802.1AS / IEEE 802.1Q VLAN IEEE 802.3AD / IEEE 802.3ad IEEE 802.3az - Energy Efficient Ethernet (EEE) IEEE 802.1P / IEEE 802.3ac |
|
| iSCSI | No |
| WoL | No |
| Jumbo Frames | Yes |
| DPDK | Yes |
| PXE | Yes |
| FcoE | No |
| PCI-SIG/SR-IOV | Yes |
| System Support | |
| Windows 7/10/11 | |
| Windows Server 2008 R2/2012 R2/2016 R2/2019/2022 R2 | |
| VMware ESXi 6.5 /6.7 /7.0 | |
| Ubuntu 16.4 or later | |
| Environmental | |
| Operating Temperature | 0 … 55C |
| Card Slot Interface | |
| OCP | OCP3.0 SFF |
| Connection | SFP+ Fiber slot |
|---|---|
| Data Interface | OCP3.0 |
