LRES3026PF-OCP
Tuotenro
LRES3026PF-OCP
Toimitusaika 21-30pv

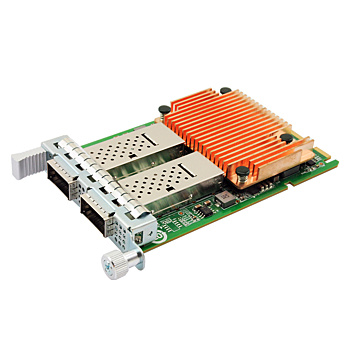

OCP3.0 Dual-port 100G QSFP28 Ethernet Network Adapter (Intel E810)
| System | |
| Controller | Intel chip (E810) |
| Connector | 2x 100G QSFP28 |
| Fiber type | 10GBASE-SR /10GBASE-LR /10GBASE-Cu 1GBASE-SR /1GBASE-LR /1GBASE-Cu |
| Bus Type | OCP3.0 SFF |
| Data rate | 10/25/50/100GbE |
| Cooling method | Passive Heatsink |
| PoE Power/port | |
| Physical Characteristics | |
| Height | SFF 115x76x1.6mm |
| Protocol Support | |
| IEEE 802.3bj 100GBASE Ethernet IEEE 802.3x Full Duplex and flow control IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3AS IEEE 802.1Q VLAN IEEE 802.1Qaz IEEE 802.1Qbb IEEE 802.1x IEEE 802.1bd IEEE1588 v1&v2 |
|
| iSCSI | No |
| WoL | No |
| Jumbo Frames | Yes |
| DPDK | Yes |
| PXE | Yes |
| FcoE | No |
| Network virtualization | SR-IOV, VxLAN, GENEVE, GRE |
| System Support | |
| Windows Server R2/2019/2022 R2 | |
| Linux Stable Kernel version 3.10.x/4.x or later | |
| Ubuntu 16.4 or later | |
| Environmental | |
| Operating Temperature | 0 … 55C |
| Card Slot Interface | |
| OCP | OCP3.0 SFF |
| Connection | QSFP28 Fiber slot |
|---|---|
| Data Interface | OCP3.0 |
