LRES2058PT-POE
Tuotenro
LRES2058PT-POE
Toimitusaika 14-22pv
313,75 EUR 250,00 EUR

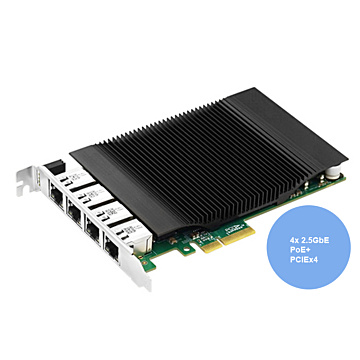

PCIe x4 Quad-port PoE+ 2.5GbE Vision Frame Grabber Card (Intel I226 based)
- Intel master chip scheme
- Mainly designed for industrial scene visual detection servers and equipment
- 30W PoE+ output, 4-Pin psu interface
- Adaptive to power output
- Large heatsink for heat dissipation
| System | |
| Controller | Intel chip (i226) |
| Connector | 4x RJ45 |
| Bus Type | PCIex4 , compatible with x8 , x16 |
| Data rate | 10/100/1000/2500Mbs |
| Cooling method | Passive Heatsink |
| PoE Power/port | 30W |
| Physical Characteristics | |
| Height | Full Height |
| Protocol Support | |
| IEEE 802.3x | |
| iSCSI | No |
| WoL | Yes |
| Jumbo Frames | Yes |
| DPDK | - |
| PXE | Yes |
| FcoE | No |
| System Support | |
| Windows 10/11 | |
| SUSE 12.5/15.4 | |
| RHEL/CentOS 8.2 | |
| Ubuntu 20.04.1/22.04.2 | |
| FreeBSD 13.2 | |
| Environmental | |
| Operating Temperature | 0..55C |
| Card Slot Interface | |
| PCIe | PCI Express x4 |
| Connection | 4x 1GBe LAN Ethernet IP |
|---|---|
| Data Interface | PCIEx4 |
